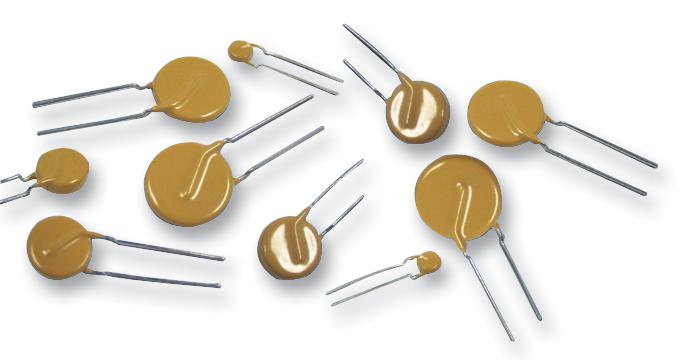

WURTH ELEKTRONIK - 820552501 - TVS Varistor, 25 V, 31 V, WE-VD, 86 V, Disc 5mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 25V
- Voltage Rating V DC: 31V
- Product Range: WE-VD Series
- Clamping Voltage Vc Max: 86V
- Varistor Case Style: Disc 5mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 100A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 1.2J
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 5mm
- Capacitance: 830pF
- Clamping Voltage: 86V
- Clamping Voltage @ 8/20µs Max: 86V
- Operating Temperature Range: -40°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 100A
- Suppressor Type: Varistor
- Surge Current: 100A
