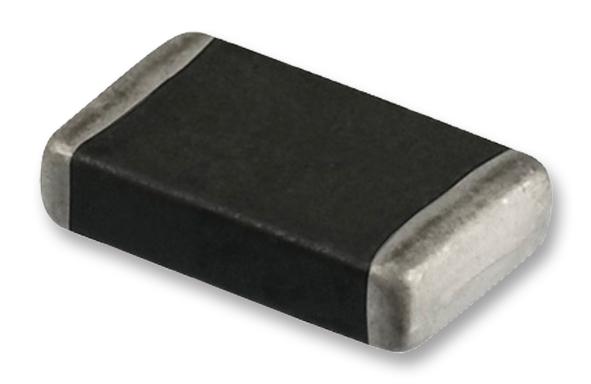

WURTH ELEKTRONIK - 82536259 - TVS Varistor, 2.5 V, 3.3 V, WE-VS, 13 V, 0603 [1608 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 2.5V
- Voltage Rating V DC: 3.3V
- Product Range: WE-VS Series
- Clamping Voltage Vc Max: 13V
- Varistor Case Style: 0603 [1608 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 30A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 100mJ
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance: 180pF
- Clamping Voltage: 13V
- Clamping Voltage @ 8/20µs Max: 10V
- Operating Temperature Range: -40°C to +85°C
- Peak Pulse Current IPP @ 8/20µs: 30A
- Suppressor Type: Varistor
- Surge Current: 30A
