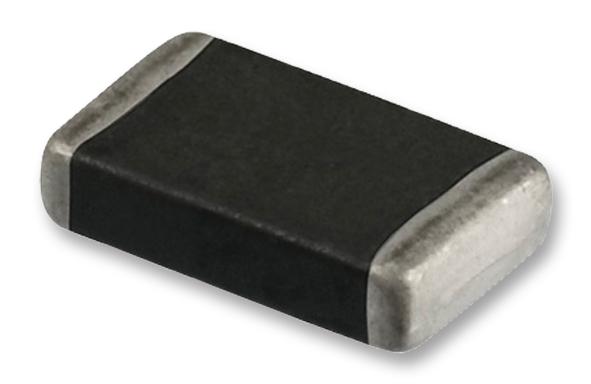

WURTH ELEKTRONIK - 82541250 - TVS Varistor, 25 V, 30 V, WE-VS, 72 V, 1206 [3216 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 25V
- Voltage Rating V DC: 30V
- Product Range: WE-VS Series
- Clamping Voltage Vc Max: 72V
- Varistor Case Style: 1206 [3216 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 200A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 1J
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance: 620pF
- Clamping Voltage: 72V
- Clamping Voltage @ 8/20µs Max: 72V
- Operating Temperature Range: -40°C to +85°C
- Peak Pulse Current IPP @ 8/20µs: 200A
- Suppressor Type: Varistor
- Surge Current: 200A
