Omschrijving

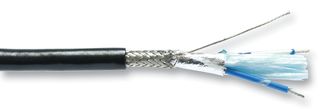

BELDEN - 8761 060U500 - Multipair Cable, Audio Control, Screened, 1 Pair, 22 AWG, 0.325 mm², 500 ft, 152.4 m
- Cable Shielding: Screened
- No. of Pairs: 1 Pair
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.325mm²
- Reel Length (Imperial): 500ft
- Reel Length (Metric): 152.4m
- Jacket Colour: Chrome
- No. of Max Strands x Strand Size: 7 x 0.255mm
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Copper
- External Diameter: 4.445mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 2401C EQUIVALENT
- Belden Type Number: 8761
- Cable Type: Foil Shield
- Cable UL Style Number: UL2092
- Conductor Make-up: 7 / 30AWG
- Core - Core Capacitance: 79pF/m
- Core-Screen Capacitance: 154pF
- Current Rating: 2.9A
- No. of Cores: 2Core
- Outer Diameter: 4.45mm
- Secondary Insulation Colour: Chrome
- Secondary Insulation Material: PVC
- Wire Size: 22AWG
