Documenten en downloads
Omschrijving

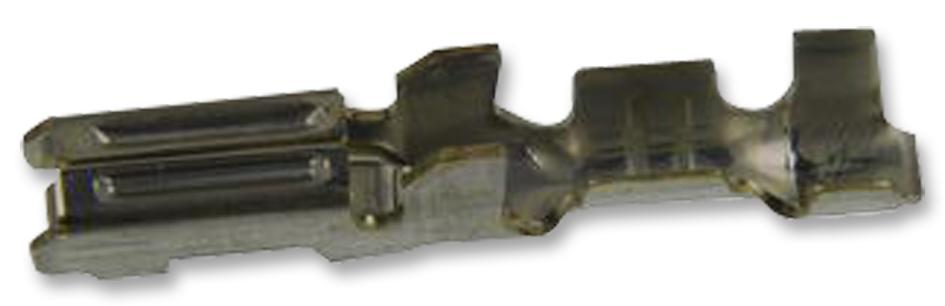

AMP - TE CONNECTIVITY - 87667-5 - Contact, AMPMODU Mod IV, Socket, Crimp, 22 AWG, Gold Plated Contacts, Mod IV Series Connectors
- Product Range: AMPMODU Mod IV Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- Wire Size AWG Max: 22AWG
- Contact Plating: Gold Plated Contacts
- For Use With: Mod IV Series Connectors
- Wire Size AWG Min: 26AWG
- Contact Material: Beryllium Copper
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 0.64mm
- Cable Diameter Min: 0.4mm
- Contact Size: 22
- Contact Termination: Crimp
- Current Rating: 3A
- External Length / Height: 11.3mm
- Gender: Receptacle
- Operating Temperature Max: 105°C
- Operating Temperature Min: -65°C
- Wire Area Size Max: 0.4mm²
- Wire Area Size Min: 0.12mm²
- Wire Size: 22AWG
- Wire Size (AWG): 26AWG to 22AWG
