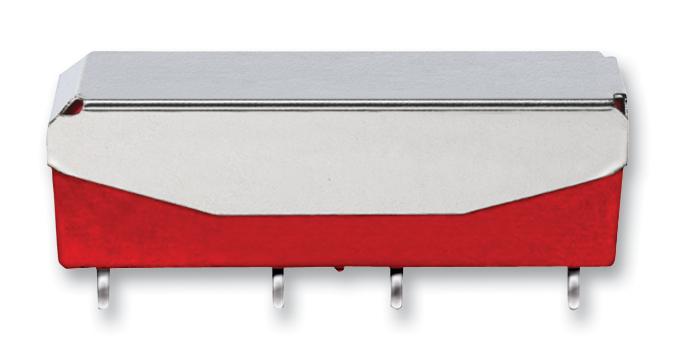

COTO TECHNOLOGY - 9091-12-01 - Reed Relay, SPST-NO, 12 VDC, 9091, Through Hole, 1 kohm, 500 mA
- Contact Configuration: SPST-NO
- Coil Voltage: 12VDC
- Product Range: 9091 Series
- Relay Mounting: Through Hole
- Coil Resistance: 1kohm
- Switching Current Max: 500mA
- Switching Voltage Max: 200V
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: UL
- Coil Voltage Max: 15VDC
- Coil Voltage VDC Nom: 12V
- Contact Current DC Max: 500mA
- Contact Resistance: 125mohm
- Contact Voltage DC Max: 200V
- External Depth: 15.62mm
- External Height: 6.98mm
- External Length / Height: 6.98mm
- External Width: 3.81mm
- Insulation Resistance: 1000Gohm
- Lead Spacing: 3.81mm
- Must Actuate Voltage: 9VDC
- Must Release Voltage: 1VDC
- No. of Pins: 4Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Operating Time: 0.5ms
- Release Time: 0.3ms
- Switch Current Max: 500mA
- Switch Power Max: 10W
- Type: Diode
