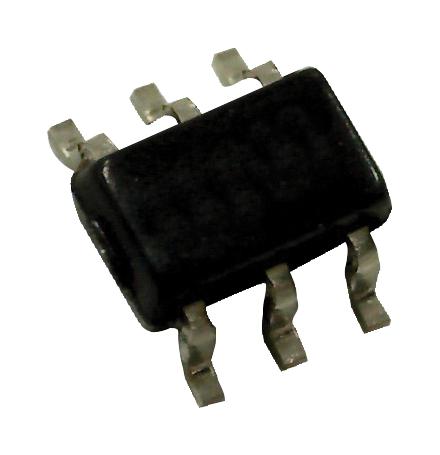

93LC66BT-I/Ot Serial EEPROM, 4Kbit, 2Mhz, Sot-23-6 Microchip

MICROCHIP - 93LC66BT-I/OT - EEPROM, Microwire, 4 Kbit, 256 x 16bit, Serial Microwire, 2 MHz, SOT-23, 6 Pins

• Memory Size: 4Kbit
• EEPROM Memory Configuration: 256 x 16bit
• Memory Interface Type: Serial Microwire
• Clock Frequency: 2MHz
• Memory Case Style: SOT-23
• No. of Pins: 6Pins
• Supply Voltage Min: 2.5V
• Supply Voltage Max: 5.5V
• Operating Temperature Min: -40°C
• Operating Temperature Max: 85°C
• Product Range: 4Kbit Microwire Serial EEPROM
• MSL: MSL 1 - Unlimited
• SVHC: No SVHC (27-Jun-2018)
• Automotive Qualification Standard: AEC-Q100
• Clock Frequency Max: 2MHz
• IC Generic Number: 93LC66
• IC Interface Type: Serial Microwire
• Memory Density: 4Kbit
• Memory Type: EEPROM
• Memory Voltage Vcc: 2.5V
• Operating Temperature Range: -40°C to +85°C
• Supply Voltage Range: 2.5V to 5.5V
• Termination Type: Surface Mount Device
