Omschrijving
TE CONNECTIVITY - A101SYCB04 - Toggle Switch, On-On, SPDT, Non Illuminated, GEMINI, Panel Mount
- Switch Operation: On-On
- Contact Configuration: SPDT
- Illumination: Non Illuminated
- Product Range: GEMINI Series
- Contact Current Max: -
- Switch Mounting: Panel
- Contact Voltage AC Nom: 20V
- Switch Terminals: PC Pin
- Contact Voltage DC Nom: 20V
- SVHC: Lead (15-Jan-2019)
- Actuation Type: Bat
- Bush Thread Length: 8.9mm
- Contact Resistance: 30mohm
- Contact Resistance Max: 30mohm
- Contact Voltage AC Max: 20V
- Contact Voltage DC Max: 20V
- Dielectric Strength VDC: 1000V
- External Depth: 12.91mm
- External Length / Height: 9.09mm
- External Width: 12.7mm
- Flammability Rating: UL94V-0
- Height: 5.21mm
- Insulation Resistance: 30Mohm
- Insulation Resistance Voltage: 500VDC
- Lead Spacing: 4.7mm
- Lever Length: 10.4mm
- No. of Electrical Operations: 30000
- No. of Mechanical Operations: 30000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Switching Power Max: 0.4VA
- Thread Size: 1/4 x 40NS
Verwachte verzendkosten
Bekijk ook eens

TE CONNECTIVITY
A105SYCB04 Toggle Switch, SPDT, On-Off-On Te Connectivity
Actie prijs€9,47
Op voorraad, 502 producten
TE CONNECTIVITY
A205SYZQ04 Toggle Switch, DPDT, On-Off-On Te Connectivity
Actie prijs€8,94
Op voorraad, 212 producten
TE CONNECTIVITY

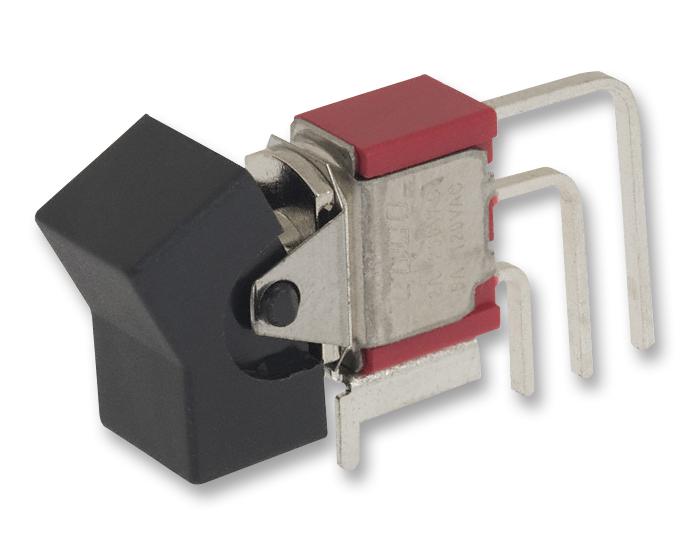

A101J1AV2Q004 Switch, Rocker, SPDT, Ra Te Connectivity
Actie prijs€7,76
Op voorraad, 29 producten
C&K COMPONENTS
T201STDCBE Switch, Pcb, DPDT C&K Components
Actie prijs€19,23
Nog maar 6 producten over
C&K COMPONENTS
7103SYZQE Switch, SPDT, Ctr Off C&K Components
Actie prijs€15,38
Op voorraad, 96 producten
TE CONNECTIVITY

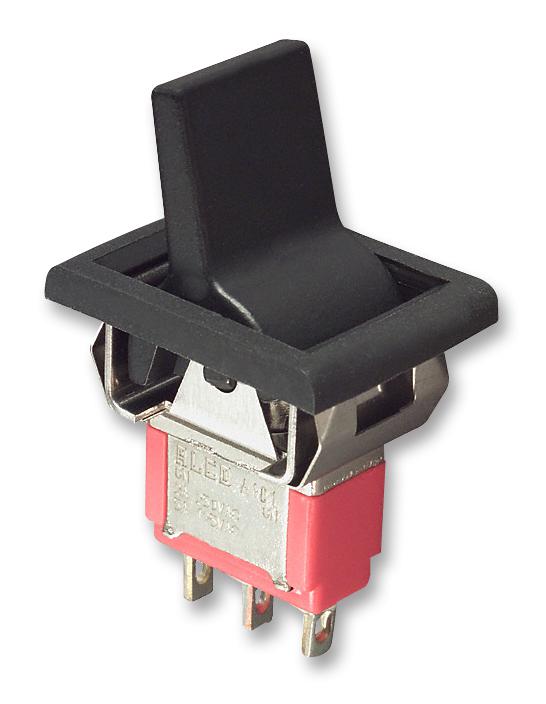

A101J61ZQ0004 Switch, Rocker, SPST Te Connectivity
