A103SYCB04 Toggle Switch Te Connectivity

TE CONNECTIVITYSKU:A103SYCB04 Bestelcode:1197676

Prijs:
Actie prijs€8,26

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (116 units)

Documenten en downloads

Omschrijving

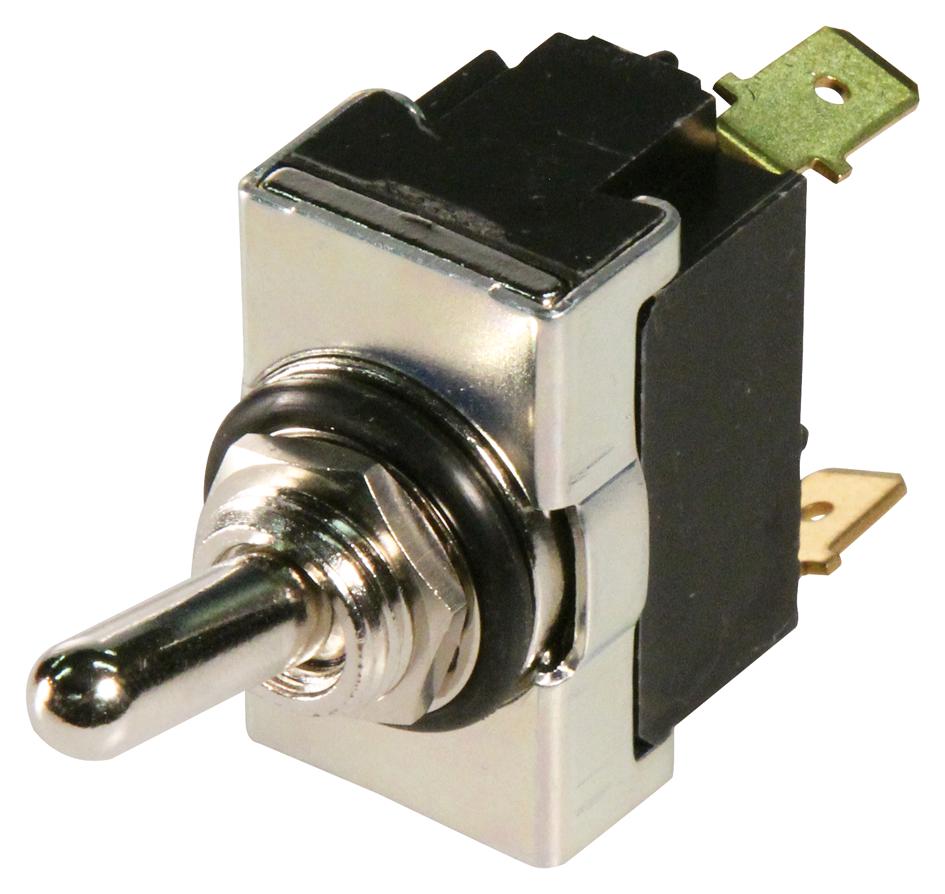

TE CONNECTIVITY - A103SYCB04 - Toggle Switch, On-Off-On, SPDT, Non Illuminated, GEMINI, Panel Mount

  • Switch Operation: On-Off-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: GEMINI Series
  • Contact Current Max: -
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: PC Pin
  • Contact Voltage DC Nom: 20V
  • SVHC: Lead (15-Jan-2019)
  • Actuation Type: Bat
  • Bush Thread Length: 8.9mm
  • Contact Resistance: 30mohm
  • Contact Resistance Max: 30mohm
  • Contact Voltage AC Max: 20V
  • Contact Voltage DC Max: 20V
  • Dielectric Strength VDC: 1000V
  • External Depth: 12.91mm
  • External Length / Height: 9.09mm
  • External Width: 12.7mm
  • Flammability Rating: UL94V-0
  • Height: 5.21mm
  • Insulation Resistance: 30Mohm
  • Insulation Resistance Voltage: 500VDC
  • Lead Spacing: 4.7mm
  • Lever Length: 10.4mm
  • No. of Electrical Operations: 30000
  • No. of Mechanical Operations: 30000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Switching Power Max: 0.4VA
  • Thread Size: 1/4 x 40NS
