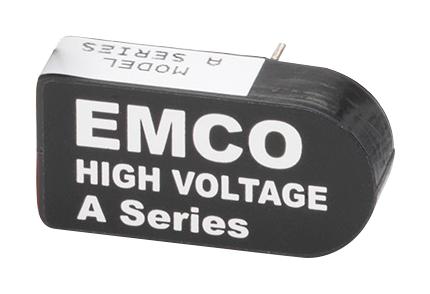

XP POWER - A12P-12 - High Voltage DC/DC Converter, Proportional, Positive Output, Adjustable, 1 W, 830 µA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 1.2kV
- Output Current - Output 1: 830µA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Product Range: A Series
- Polarity: Positive Output
- DC / DC Converter Output Type: Fixed, Adjustable
- Input Voltage DC Min: 700mV
- Input Voltage DC Max: 12V
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 11.43mm
- Height: 6.35mm
- Depth: 23.37mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CE, UL
