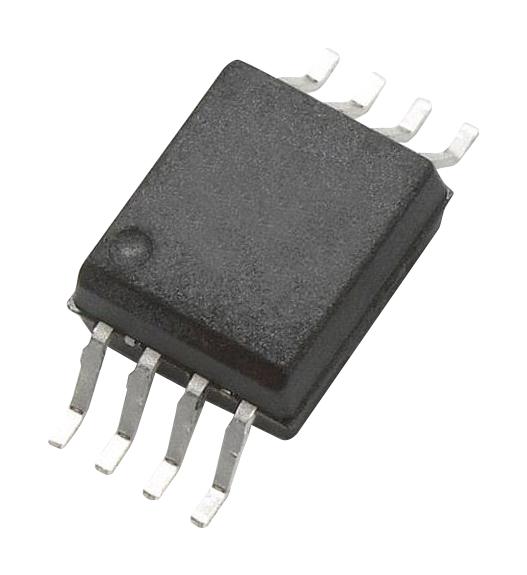

BROADCOM - ACPL-C87B-000E - Isolation Amplifier, Optically, 1 Amplifier, 9.9 mV, 5 kV, 3V to 5.5V, SSO, 8 Pins
- No. of Amplifiers: 1 Amplifier
- Input Offset Voltage: 9.9mV
- Isolation Voltage: 5kV
- Supply Voltage Range: 3V to 5.5V
- Amplifier Case Style: SOIC
- No. of Pins: 8Pins
- Bandwidth: 100kHz
- Gain Non-Linearity Max: 0.1%
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Product Range: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (12-Jan-2017)
- Amplifer Supply Voltage: 3V to 5.5V
- Input Current: 10.5mA
- No. of Amplifiers: 1Amplifiers
- No. of Channels: 1Channels
- Slew Rate: 15kV/µs
