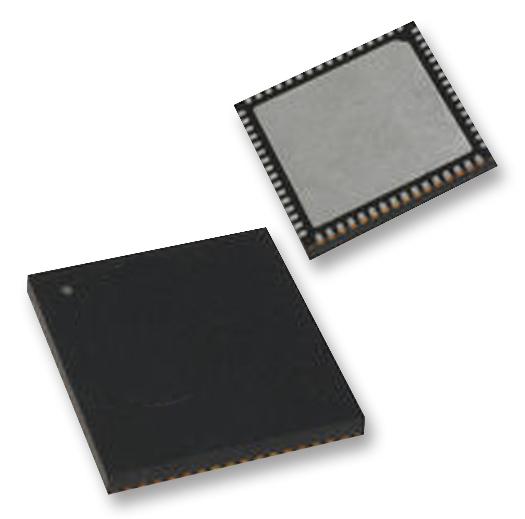

MICROCHIP - ATSAM3S2BA-MU - ARM MCU, SAM3S Series, SAM32 Family SAM 3S Series Microcontrollers, ARM Cortex-M3, 32bit, 64 MHz
- Product Range: SAM32 Family SAM 3S Series Microcontrollers
- Architecture: ARM Cortex-M3
- No. of Bits: 32bit
- CPU Speed: 64MHz
- Program Memory Size: 128KB
- RAM Memory Size: 32KB
- No. of Pins: 64Pins
- MCU Case Style: QFN
- No. of I/O's: 47I/O's
- Embedded Interface Type: I2C, SPI, SSC, UART, USART
- Supply Voltage Min: 1.62V
- Supply Voltage Max: 3.6V
- MCU Family: SAM32
- MCU Series: SAM 3S
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: SAM3S
- MPU Core Size: 32bit
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Peripherals: ADC, Comparator, DAC, PWM, Temp Sensor
- Program Memory Size: 128KB
