AV01-B22-M1-IP65 Switch, Anti-Vandal, Off-Mom, Curved multicomp Pro

MULTICOMP PROSKU:AV01-B22-M1-IP65 Bestelcode:1843025

Prijs:
Actie prijs€17,02

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (42 units)

Documenten en downloads

Omschrijving

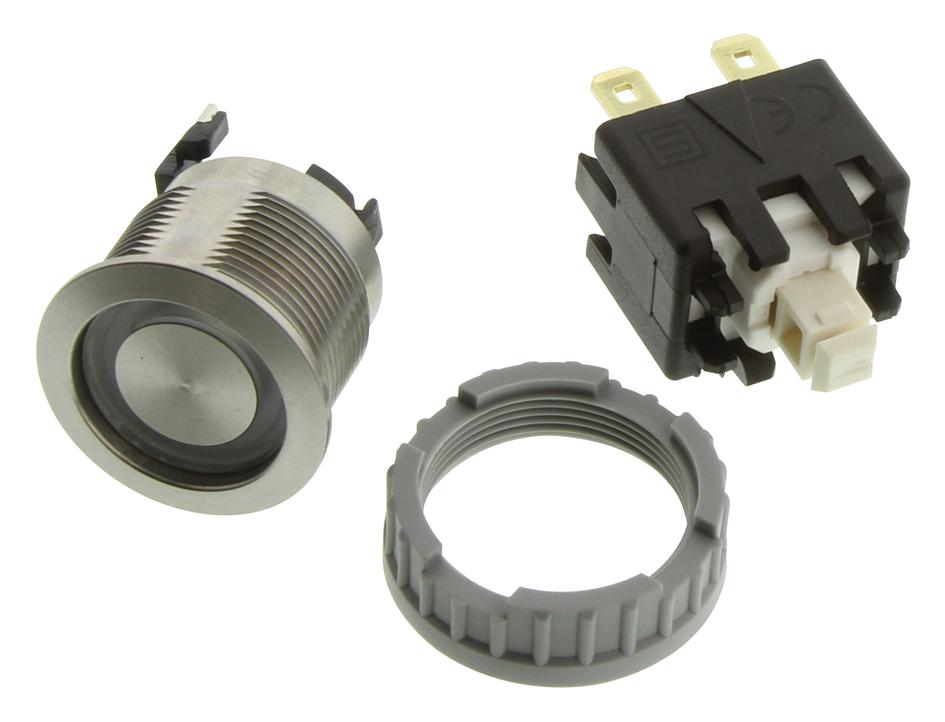

MULTICOMP PRO - AV01-B22-M1-IP65 - Vandal Resistant Switch, 19 mm, SPST, Off-(On), Flush, 2A DC, 36V DC

  • Contact Configuration: SPST
  • Actuator / Cap Colour: Natural
  • Product Range: -
  • Switch Operation: Off-(On)
  • Illumination Colour: Non-illuminated
  • Switch Terminals: Screw
  • Contact Current Max: 2A
  • Contact Voltage AC Max: -
  • Operating Force: 4N
  • Contact Voltage DC Max: 36V
  • SVHC: No SVHC (15-Jan-2018)
  • Contact Current DC Max: 2A
  • Contact Resistance: 50mohm
  • Contact Voltage VDC: 36V
  • Dielectric Strength VDC: 2000V
  • IP / NEMA Rating: IP65
  • IP Rating: IP65
  • Insulation Resistance: 1000Mohm
  • No. of Electrical Operations: 200000
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 19mm
  • Pushbutton Actuator Style: Flush
  • Pushbutton Switch Type: Anti-Vandal
  • Switch Mounting: Panel
