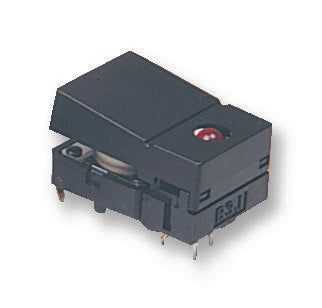

OMRON - B3J-2100 - Tactile Switch, B3J, Top Actuated, Through Hole, Hinged Button, 127 gf, 50mA at 24VDC
- Product Range: B3J Series
- Actuator Orientation: Top Actuated
- Switch Mounting: Through Hole
- Actuator Style: Hinged Button
- Actuating Force: 127gf
- Contact Rating: 50mA at 24VDC
- Switch Dimensions (L x W): 18mm x 12mm
- IP Rating: IP00
- Illumination: Illuminated
- Actuation Type: Rectangular
- Actuator / Cap Colour: Black
- Colour: Black
- Contact Configuration: SPST-NO
- Contact Current @ Contact Voltage DC Min: 1mA
- Contact Current Max: 50mA
- Contact Resistance: 100mohm
- Contact Voltage DC Nom: 24V
- Dielectric Strength VDC: 500V
- External Depth: 10.3mm
- External Length / Height: 18mm
- External Width: 12mm
- Insulation Resistance: 100Mohm
- LED Colour: Red
- No. of Electrical Operations: 30000000
- No. of Mechanical Operations: 30000000
- Operating Force: 1.27N
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Switch Operation: Off-On
