Omschrijving

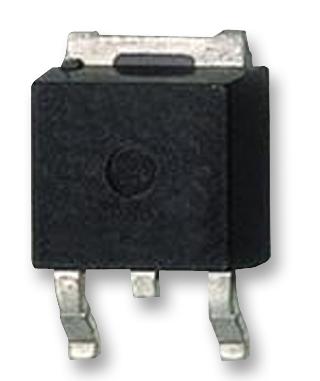

ROHM - BA78M05FP-E2 - Linear Voltage Regulator, 7805, Fixed, 7.5V To 25V In, 5V And 0.5A Out, TO-252-3
- Fixed Output Voltage Nom.: 5V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Input Voltage Min: 7.5V
- Input Voltage Max: 25V
- Product Range: 7805 Voltage Regulators
- Output Current: 500mA
- Output Type: Fixed
- Linear Regulator Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- MSL: -
- No. of Outputs: 1Outputs
- Output Voltage Nom.: 5V
- Primary Input Voltage: 25V
