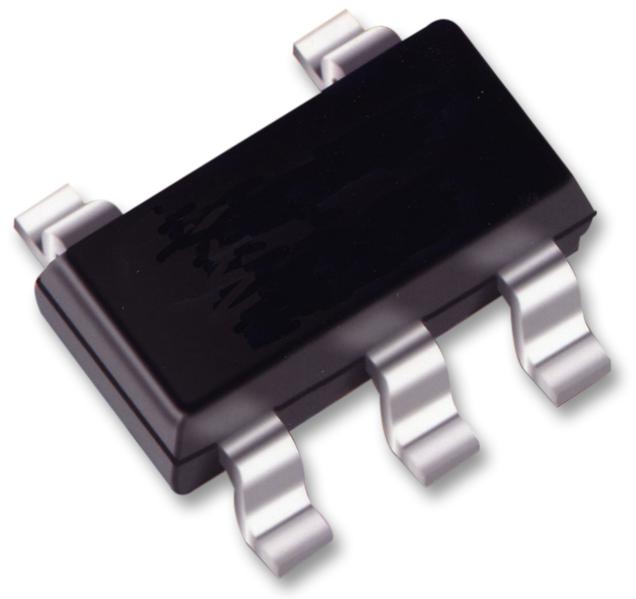

NEXPERIA - BAS70W,115 - Small Signal Schottky Diode, Single, 70 V, 70 mA, 1 V, 100 mA, 150 °C
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 70V
- Forward Current If(AV): 70mA
- Forward Voltage VF Max: 1V
- Forward Surge Current Ifsm Max: 100mA
- Operating Temperature Max: 150°C
- Diode Case Style: SOT-323
- No. of Pins: 3Pins
- Product Range: BAS70 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Current If @ Vf: 70mA
- Current Ifsm: 100mA
- Diode Type: Schottky
- Forward Voltage: 410mV
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
