Omschrijving

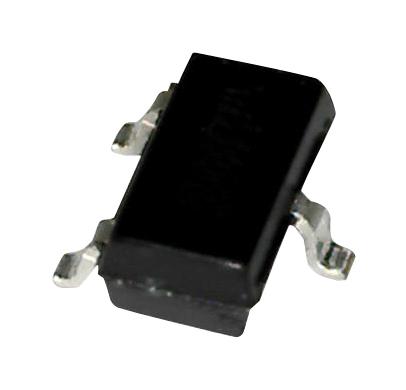

VISHAY - BAT54S-E3-08 - Small Signal Schottky Diode, Dual Series, 30 V, 200 mA, 400 mV, 600 mA, 125 °C
- Diode Configuration: Dual Series
- Repetitive Reverse Voltage Vrrm Max: 30V
- Forward Current If(AV): 200mA
- Forward Voltage VF Max: 400mV
- Forward Surge Current Ifsm Max: 600mA
- Operating Temperature Max: 125°C
- Diode Case Style: SOT-23
- No. of Pins: 3Pins
- Product Range: BAT54 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Current Ifsm: 1A
- Diode Type: Schottky
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Reverse Recovery Time trr Max: 5ns
- Termination Type: Surface Mount Device
