Omschrijving

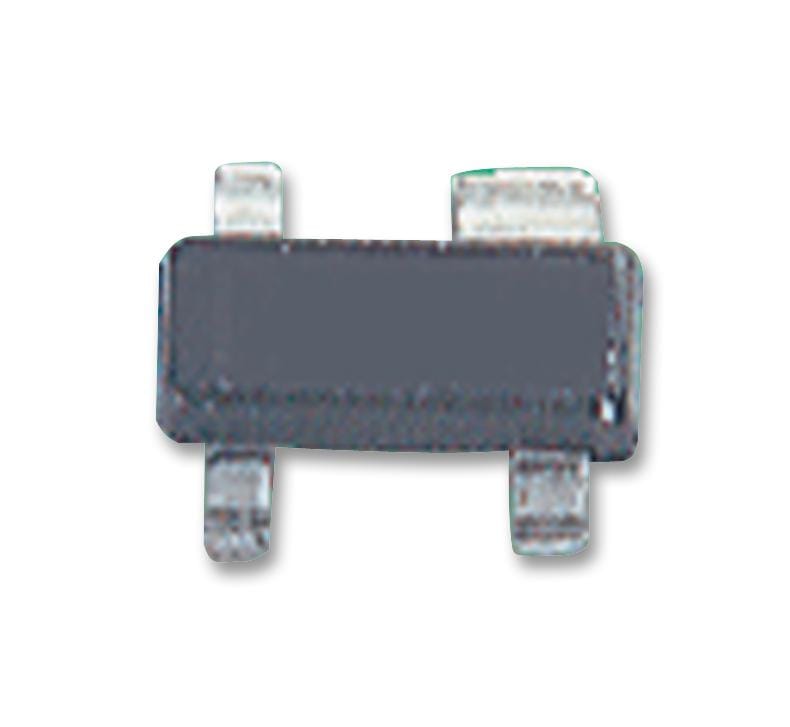

NEXPERIA - BCV61C,215 - Bipolar Transistor Array, NPN, 30 V, 100 mA, 250 mW, 110 hFE, SOT-143B
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 30V
- Power Dissipation Pd: 250mW
- DC Collector Current: 100mA
- DC Current Gain hFE: 110hFE
- Transistor Case Style: SOT-143B
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 600mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic @ Vce Sat: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 100µA
- Gain Bandwidth ft Min: 100MHz
- Gain Bandwidth ft Typ: 100MHz
- Hfe Min: 100
- Module Configuration: Dual
- No. of Transistors: 2
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 250mW
- SMD Marking: 1Kp
- Voltage Vcbo: 30V
