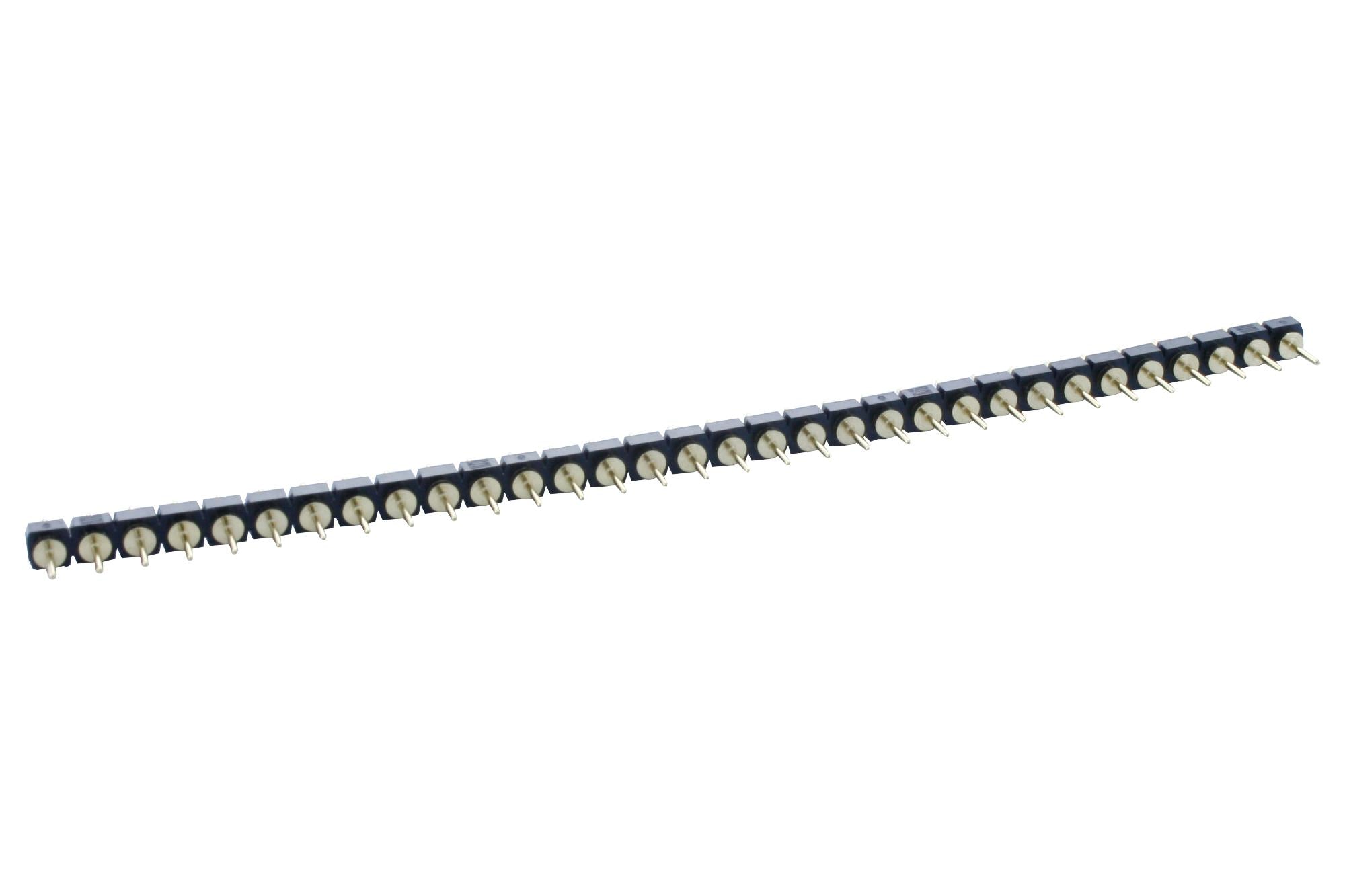

FISCHER ELEKTRONIK - BL1.36Z - PCB Receptacle, Wire-to-Board, 2.54 mm, 1 Rows, 36 Contacts, Through Hole Mount, BL
- Pitch Spacing: 2.54mm
- No. of Contacts: 36Contacts
- Gender: Receptacle
- Product Range: BL Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Copper, Tin
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 10mohm
- Current Rating: 3A
- De-mating Force: 1.3N
- Flammability Rating: UL94V-0
- Mating Force: 1.5N
- Operating Temperature Max: +160°C
- Operating Temperature Min: -40°C
- Proof Voltage: 1500V
- Voltage Rating VAC: 125V
