Omschrijving

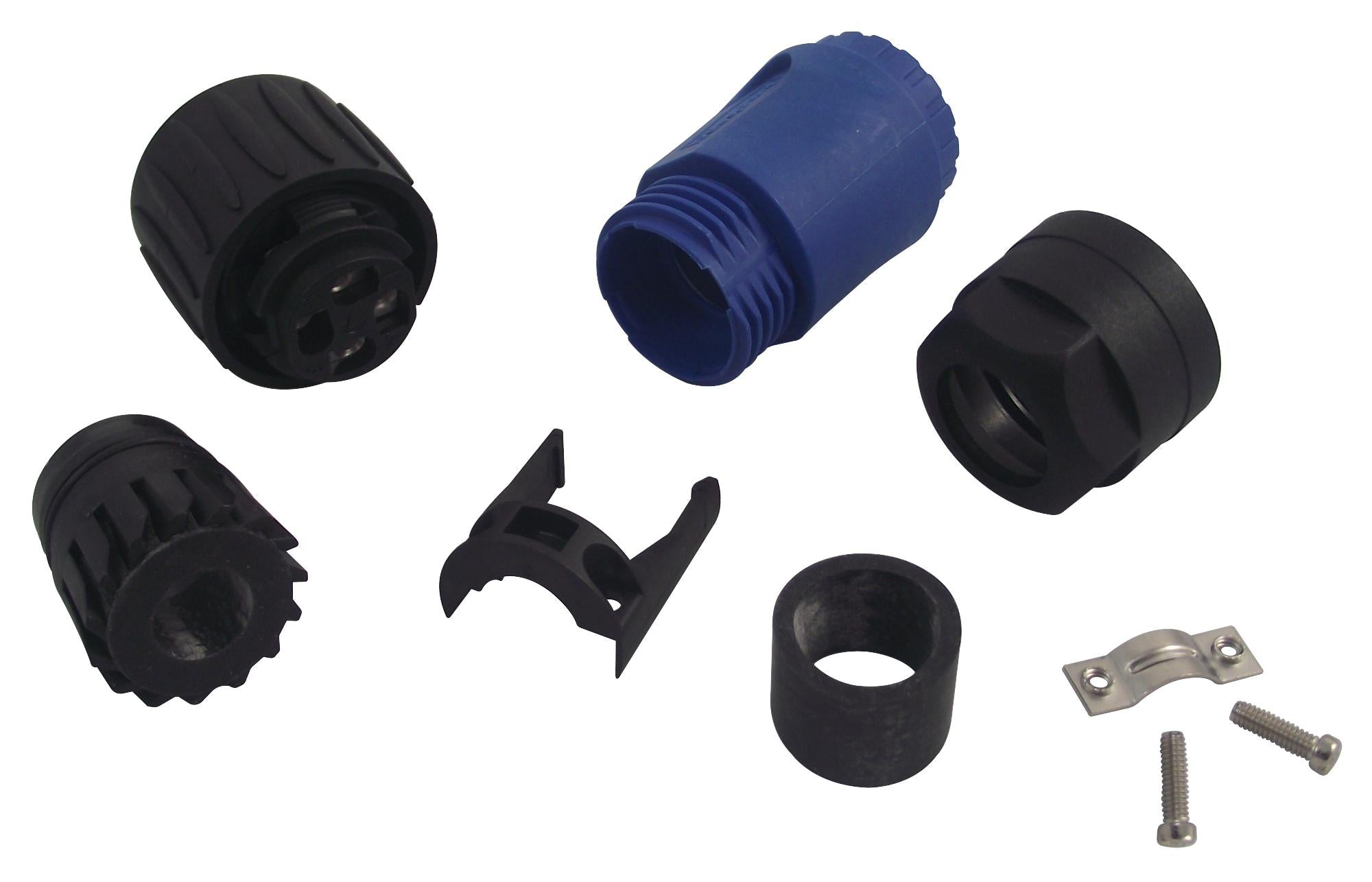

AMPHENOL SINE/TUCHEL - C016 20D003 110 10 - Circular Connector, Ecomate C016 Series, Cable Mount Receptacle, 4 Contacts, Screw Socket, Threaded
- Product Range: Ecomate C016 Series
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 4Contacts
- Circular Contact Type: Screw Socket
- Coupling Style: Threaded
- Connector Body Material: Nylon (Polyamide) Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: Silver
- SVHC: No SVHC (15-Jan-2018)
- Cable Diameter Max: 12.5mm
- Cable Diameter Min: 6mm
- Colour: Blue / Black
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Silver Plated Contacts
- Contact Resistance: 5mohm
- Contact Termination: Screw
- Contact Termination Type: Screw
- Current Rating: 16A
- Degree of Pollution: 3
- Flammability Rating: UL94V-0
- Gender: Receptacle
- Housing: Polyamide 6.6/PA6
- IP / NEMA Rating: IP65, IP67
- No. of Mating Cycles: 500
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Wire Area Size Max: 2.5mm²
