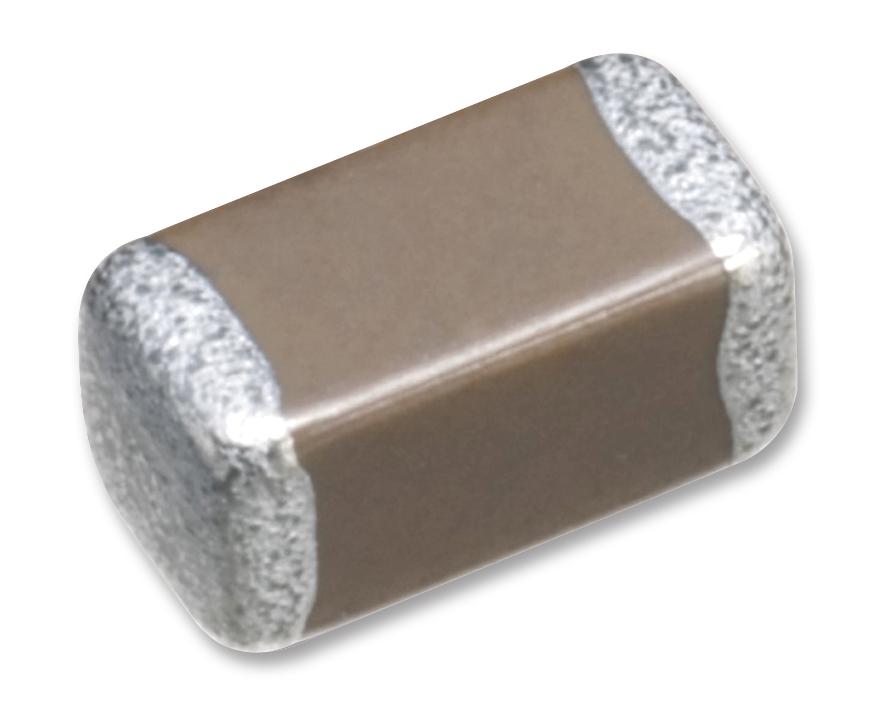

YAGEO - CC0402KRX7R7BB153 - SMD Multilayer Ceramic Capacitor, 15000 pF, 16 V, 0402 [1005 Metric], ± 10%, X7R, CC Series
- Capacitance: 15000pF
- Voltage Rating: 16V
- Ceramic Capacitor Case: 0402 [1005 Metric]
- Capacitance Tolerance: ± 10%
- Dielectric Characteristic: X7R
- Product Range: CC Series
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 10%
- Capacitor Terminals: SMD
- External Depth: 0.5mm
- External Length / Height: 1mm
- External Width: 0.5mm
- Insulation Resistance: 100000Mohm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Reel Quantity: 10000
- Terminal Length: 0.225mm
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 16V
