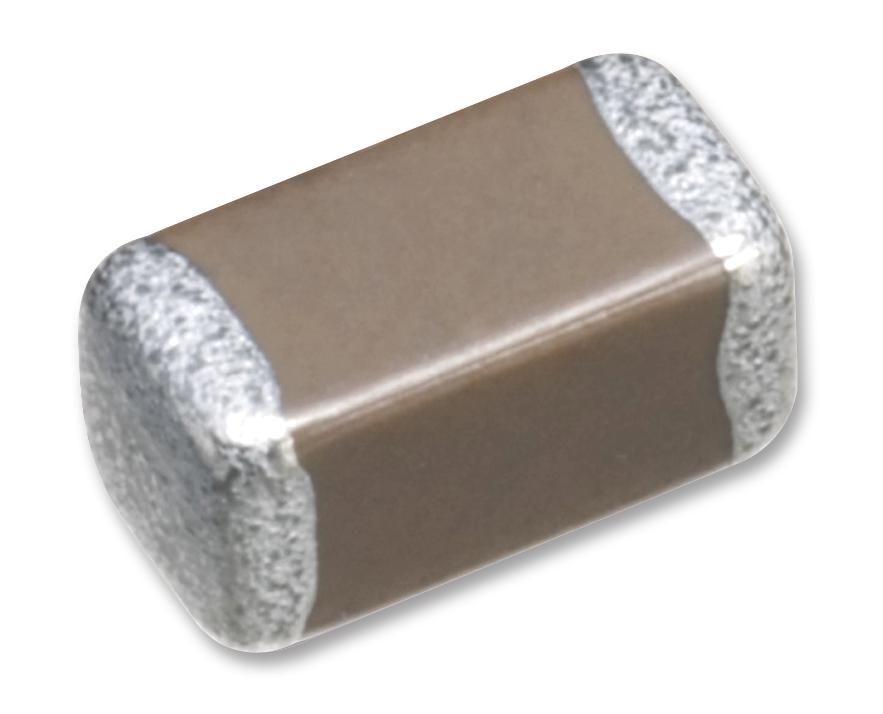

YAGEO - CC0603CRNPO9BNR47 - SMD Multilayer Ceramic Capacitor, 0.47 pF, 50 V, 0603 [1608 Metric], ± 0.25pF, C0G / NP0, CC Series
- Capacitance: 0.47pF
- Voltage Rating: 50V
- Ceramic Capacitor Case: 0603 [1608 Metric]
- Capacitance Tolerance: ± 0.25pF
- Dielectric Characteristic: C0G / NP0
- Product Range: CC Series
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 0.25pF
- Capacitor Terminals: SMD
- External Depth: 0.8mm
- External Length / Height: 1.6mm
- External Width: 0.8mm
- Insulation Resistance: 100000Mohm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Reel Quantity: 4000
- Temperature Coefficient: 0ppm/°C ± 30ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating V DC: 50V
