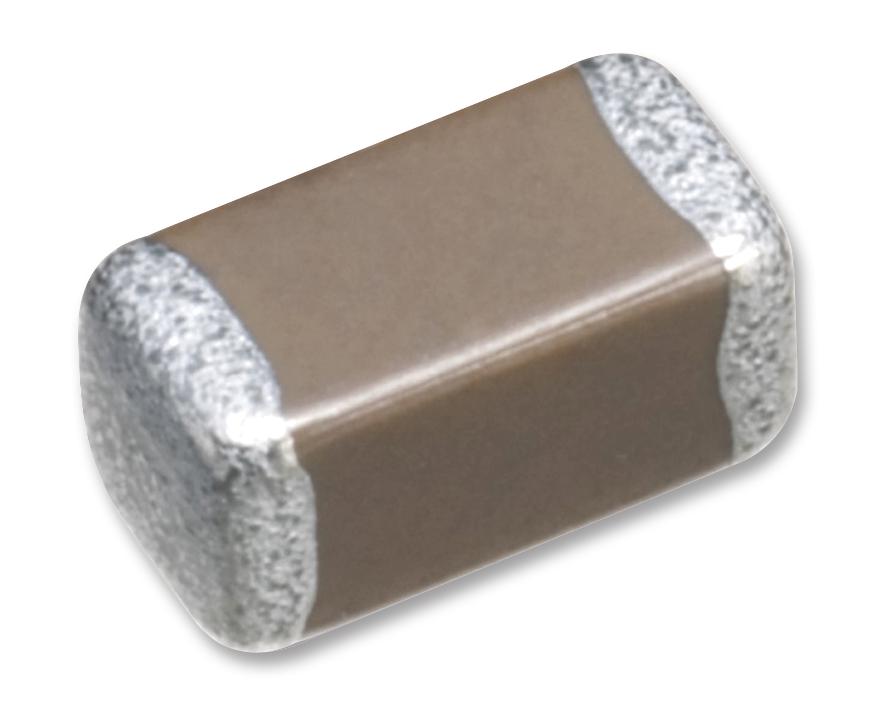

YAGEO - CC1206MRY5V7BB105 - SMD Multilayer Ceramic Capacitor, 1 µF, 16 V, 1206 [3216 Metric], ± 20%, Y5V, CC Series
- Capacitance: 1µF
- Voltage Rating: 16V
- Ceramic Capacitor Case: 1206 [3216 Metric]
- Capacitance Tolerance: ± 20%
- Dielectric Characteristic: Y5V
- Product Range: CC Series
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- Capacitor Terminals: SMD
- External Depth: 1.055mm
- External Length / Height: 3.2mm
- External Width: 1.6mm
- Insulation Resistance: 100000Mohm
- No. of Pins: 2Pins
- Operating Temperature Range: -25°C to +85°C
- Reel Quantity: 4000
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 16V
