Omschrijving

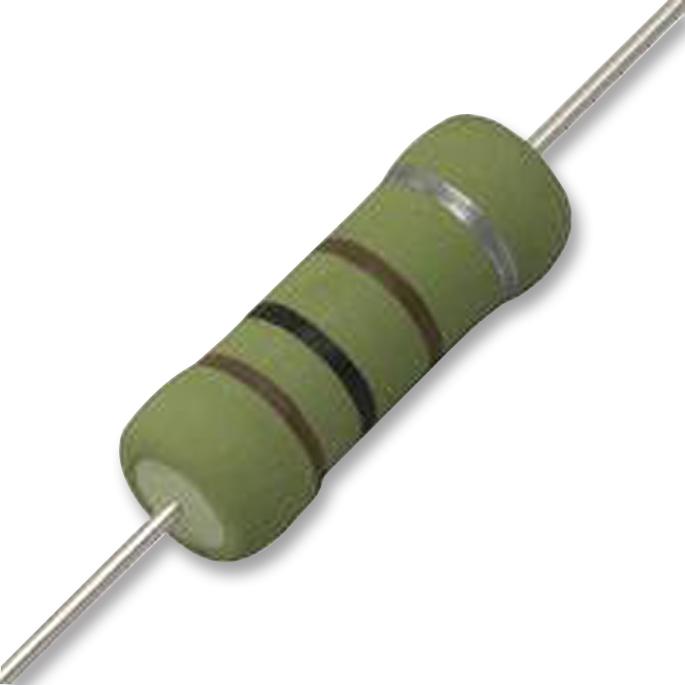

CGS - TE CONNECTIVITY - CCR1100RKTB - Through Hole Resistor, 100 ohm, CCR, 1 W, ± 10%, Axial Leaded, 300 V
- Resistance: 100ohm
- Product Range: CCR Series
- Power Rating: 1W
- Resistance Tolerance: ± 10%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 300V
- Resistor Element Material: Ceramic
- Temperature Coefficient: -900ppm/°C ± 300ppm/°C
- Automotive Qualification Standard: -
- External Length / Height: 5.5mm
- External Width: 16.5mm
- Lead Diameter: 0.8mm
- Lead Length: 38mm
- No. of Pins: 2Pins
- Operating Temperature Max: 200°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +200°C
- Resistor Mounting: Through Hole
- Withstand Voltage: 500V
