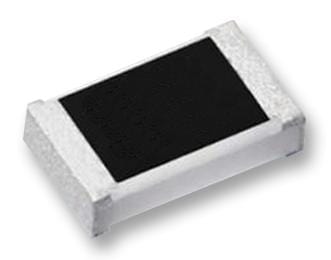

VISHAY - CH02016-100RGF - Resistor, 100 ohm, CH, 02016 [4840 Metric], 30 mW, ± 2%, ± 100ppm/°C
- Resistance: 100ohm
- Product Range: CH Series
- Resistor Case Style: 02016 [4840 Metric]
- Power Rating: 30mW
- Resistance Tolerance: ± 2%
- Temperature Coefficient: ± 100ppm/°C
- Frequency Max: 50GHz
- Resistor Mounting: Surface Mount Device
- MSL: -
- External Depth: 0.4mm
- External Length / Height: 0.5mm
- External Width: 0.5mm
- Frequency Range: 50GHz
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Resistor Element Material: Thin Film
- Voltage Rating: 30V
