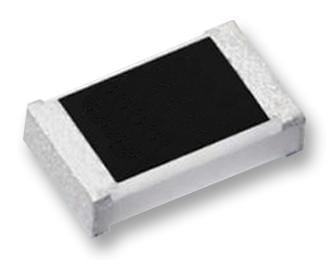

VISHAY - CH0402-500RGFPT - Resistor, 500 ohm, CH, 0402 [1005 Metric], 50 mW, ± 2%, ± 100ppm/°C
- Resistance: 500ohm
- Product Range: CH Series
- Resistor Case Style: 0402 [1005 Metric]
- Power Rating: 50mW
- Resistance Tolerance: ± 2%
- Temperature Coefficient: ± 100ppm/°C
- Frequency Max: 50GHz
- Resistor Mounting: Surface Mount Device
- MSL: -
- External Depth: 0.6mm
- External Length / Height: 0.5mm
- External Width: 1mm
- Frequency Range: 50GHz
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Resistor Element Material: Thin Film
- Voltage Rating: 37V
