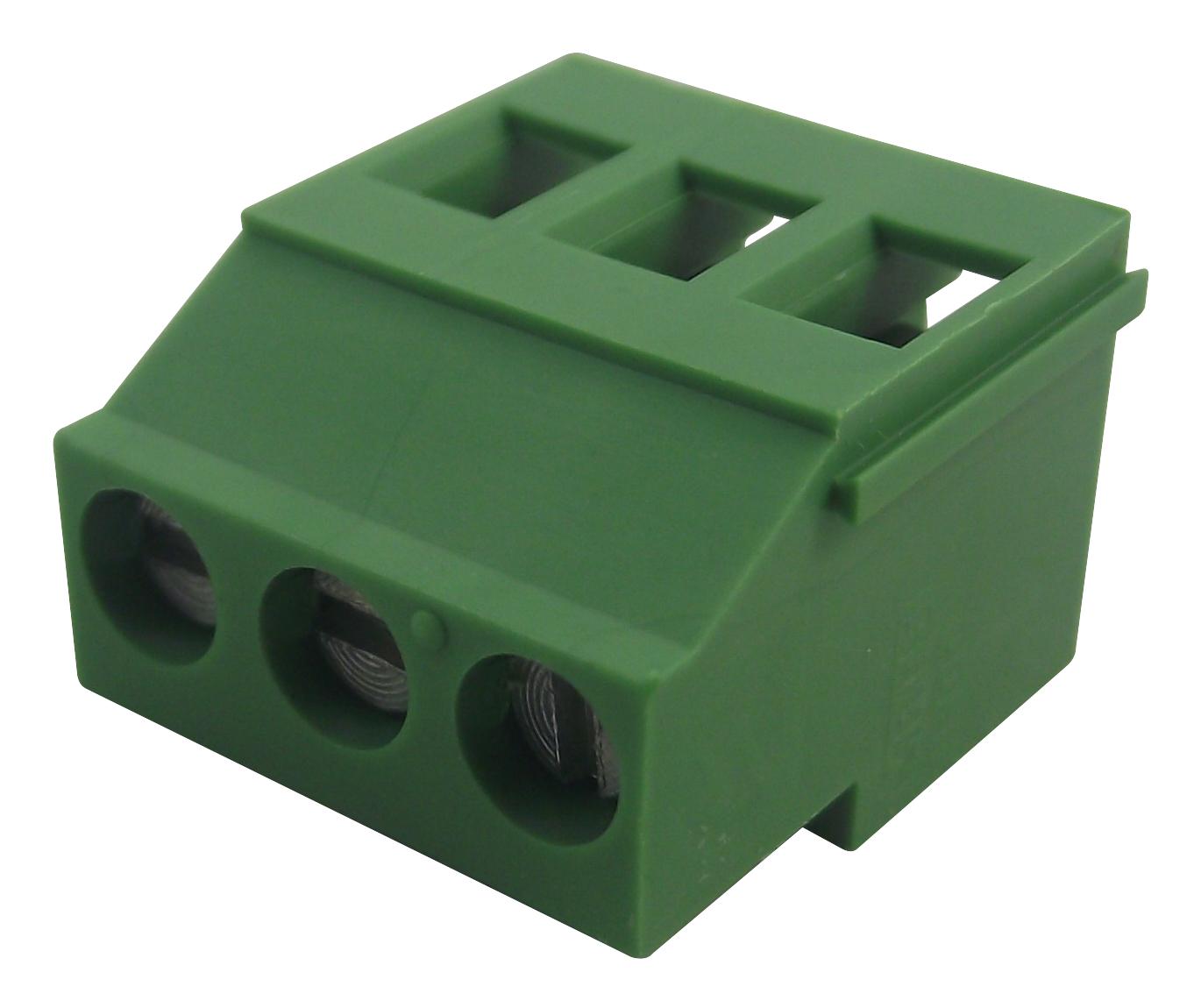

CTB0110/3 Terminal Block, Wire TO BRD, 3Pos, 12AWG Camdenboss

CAMDENBOSSSKU:CTB0110/3 Bestelcode:3882585

Prijs:
Actie prijs€4,99

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (453 units)

Documenten en downloads

Omschrijving

CAMDENBOSS - CTB0110/3 - Standard Terminal Block, Wire to Board, CTB0110, 3 Contacts, 7.5 mm, Terminal Block, PCB, PCB Mount

  • Product Range: CTB0110 Series
  • No. of Contacts: 3Contacts
  • Pitch Spacing: 7.5mm
  • Connector Type: Terminal Block, PCB
  • Connector Mounting: PCB Mount
  • Wire Size AWG Max: 12AWG
  • Wire Size AWG Min: 30AWG
  • Contact Plating: Nickel Plated Contacts
  • Contact Material: Brass
  • SVHC: No SVHC (15-Jan-2019)
  • Block Orientation: Through Hole Right Angle
  • Colour: Green
  • Conductor Area CSA: 4mm²
  • Current Rating: 24.0A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 5Mohm
  • No. of Positions: 3Ways
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -20°C
  • Rated Current: 14A
  • Rated Voltage: 300V
  • Screw Material: Steel
  • Screw Plating: Zinc
  • Thread Size: M3
  • Voltage Rating AC Max: 500V
  • Voltage Rating VAC: 500V
  • Wire Area Size Max: 4mm²
  • Wire Connection Method: Screw
  • Wire Size (AWG): 30AWG to 12AWG
