Omschrijving

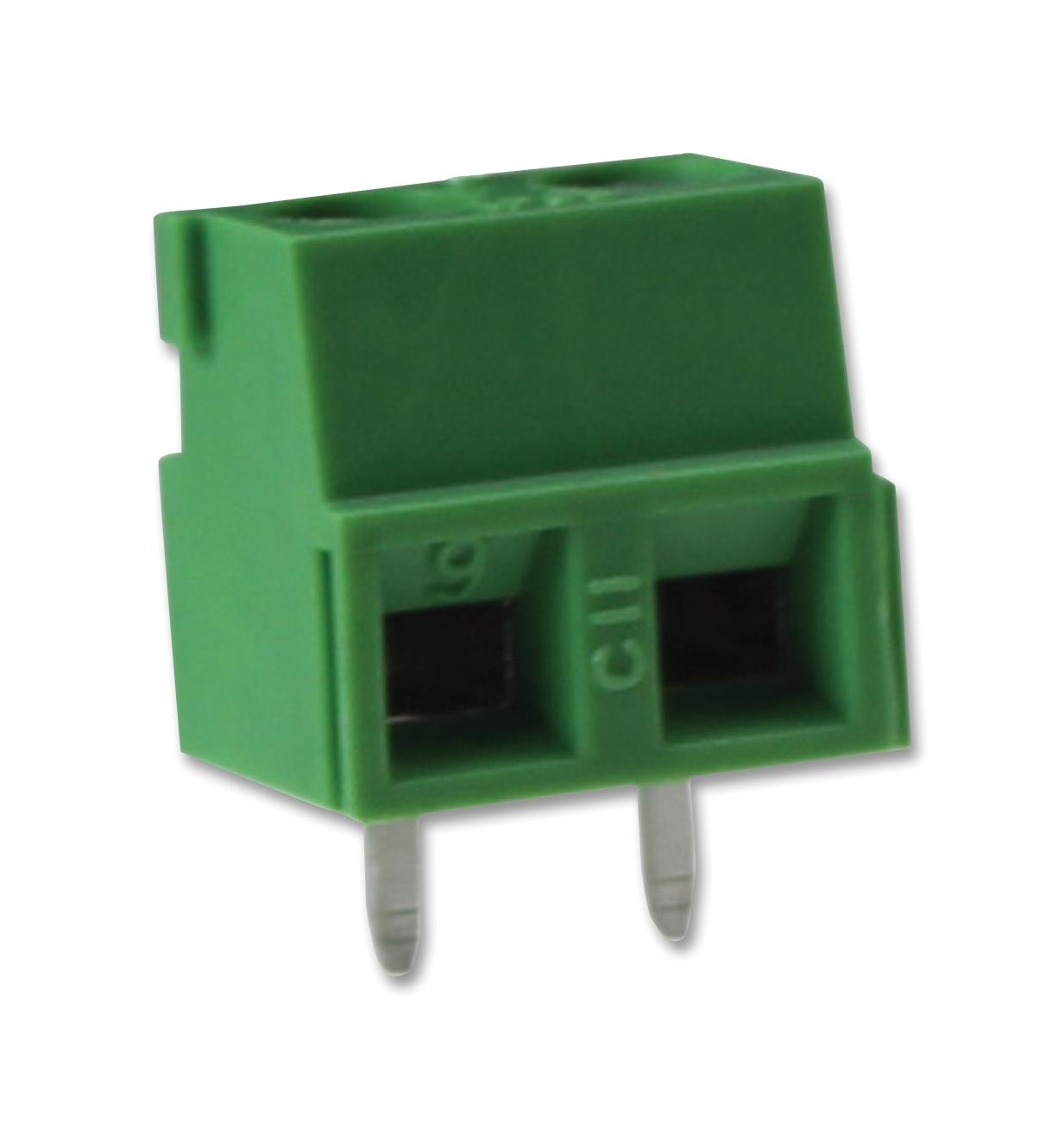

CAMDENBOSS - CTB0308/2 - Standard Terminal Block, Wire to Board, CTB0308, 2 Contacts, 3.81 mm, Terminal Block, PCB
- Product Range: CTB0308 Series
- No. of Contacts: 2Contacts
- Pitch Spacing: 3.81mm
- Connector Type: Terminal Block, PCB
- Connector Mounting: PCB Mount
- Wire Size AWG Max: 16AWG
- Wire Size AWG Min: 30AWG
- Contact Plating: Nickel Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Block Orientation: Through Hole Right Angle
- Colour: Green
- Conductor Area CSA: 1.5mm²
- Current Rating: 9.0A
- Flammability Rating: UL94V-0
- Insulation Resistance: 5Mohm
- No. of Positions: 2Ways
- Operating Temperature Max: 125°C
- Operating Temperature Min: -20°C
- Rated Current: 10A
- Rated Voltage: 130V
- Screw Material: Steel
- Screw Plating: Zinc
- Thread Size: M2
- Voltage Rating AC Max: 130V
- Voltage Rating VAC: 130V
- Wire Area Size Max: 0.75mm²
- Wire Connection Method: Screw
- Wire Size (AWG): 30AWG to 16AWG
