CTB92VG/4S Terminal Block, Pluggable, 4Pos, 12AWG Camdenboss

CAMDENBOSSSKU:CTB92VG/4S Bestelcode:3881933

Prijs:
Actie prijs€10,42

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (104 units)

Documenten en downloads

Omschrijving

CAMDENBOSS - CTB92VG/4S - Pluggable Terminal Block, 5 mm, 4 Ways, 30AWG to 12AWG, 2.5 mm², Screw, 12 A

  • Pitch Spacing: 5mm
  • No. of Positions: 4Ways
  • Wire Size (AWG): 30AWG to 12AWG
  • Conductor Area CSA: 2.5mm²
  • Wire Connection Method: Screw
  • Rated Current: 12A
  • Rated Voltage: 320V
  • Product Range: CTB92VG Series
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Green
  • Connector Mounting: Cable Mount
  • Connector Type: Terminal Block, Pluggable
  • Contact Material: Brass
  • Contact Plating: Copper Plated Contacts
  • Flammability Rating: UL94V-0
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -20°C
  • Thread Size: M3
  • Voltage Rating AC Max: 380V
  • Voltage Rating VAC: 380V
  • Wire Area Size Max: 2.5mm²
  • Wire Size AWG Max: 12AWG
  • Wire Size AWG Min: 30AWG

Verwachte verzendkosten

Bekijk ook eens

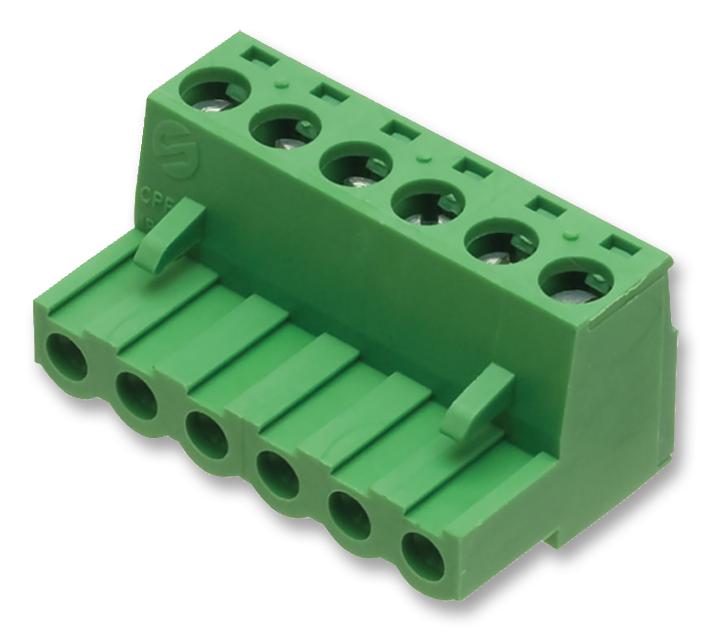

CTB92VG/6S TERMINAL BLOCK, PLUGGABLE, 6POS, 12AWG CAMDENBOSS
