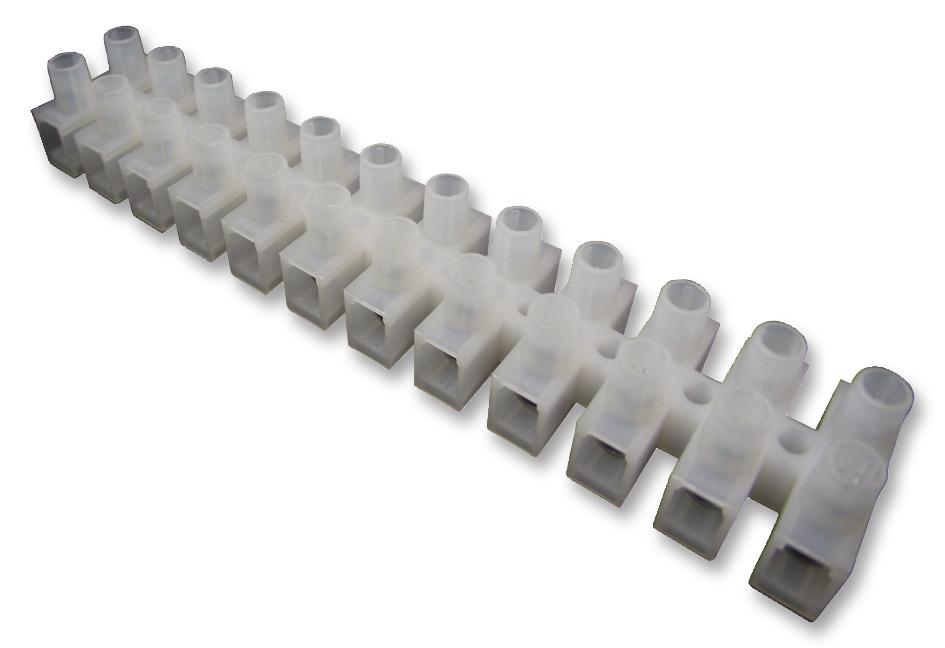

CTSN431/12 Terminal Block, Barrier, 12Pos, 12AWG Camdenboss

CAMDENBOSSSKU:CTSN431/12 Bestelcode:2321058

Prijs:
Actie prijs€9,30

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (748 units)

Documenten en downloads

Omschrijving

CAMDENBOSS - CTSN431/12 - Standard Terminal Block, CTSN431, 12 Contacts, 8 mm, Terminal Block, Pluggable, Cable Mount, 14 AWG

  • Product Range: CTSN431 Series
  • No. of Contacts: 12Contacts
  • Pitch Spacing: 8mm
  • Connector Type: Terminal Block, Pluggable
  • Connector Mounting: Cable Mount
  • Wire Size AWG Max: 14AWG
  • Wire Size AWG Min: -
  • Contact Plating: Nickel Plated Contacts
  • Contact Material: Brass
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: UL 94V-2
  • Colour: Natural
  • External Depth: 15.5mm
  • External Length / Height: 94mm
  • External Width: 18mm
  • No. of Positions: 12Ways
  • No. of Rows: 1 Row
  • No. of Rows: 1Rows
  • Operating Temperature Max: 110°C
  • Operating Temperature Min: -30°C
  • Rated Current: 15A
  • Rated Voltage: 450V
  • Row Pitch: 8mm
  • Voltage Rating VAC: 450V
  • Wire Area Size Max: 2.5mm²
  • Wire Area Size Min: 0.75mm²

Verwachte verzendkosten

Bekijk ook eens

CTSN431/12/F TERMINAL BLOCK, PLUGGABLE, 12POS CAMDENBOSS
CAMDENBOSS CTSN431/12/F Terminal Block, Pluggable, 12Pos Camdenboss
Actie prijs€8,76
Op voorraad, 831 producten

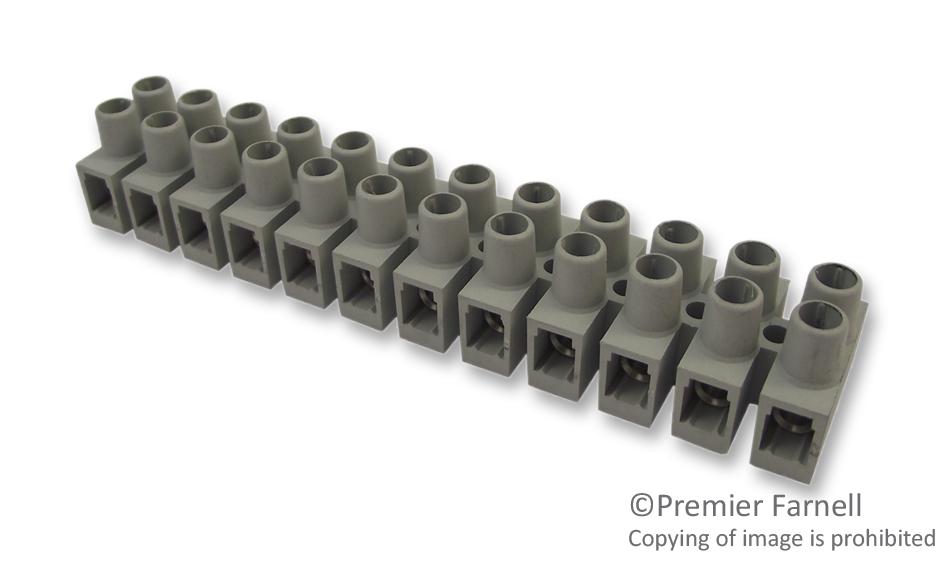

CTSN434/12W TERMINAL BLOCK, BARRIER, 12POS, 8AWG CAMDENBOSS
