Omschrijving

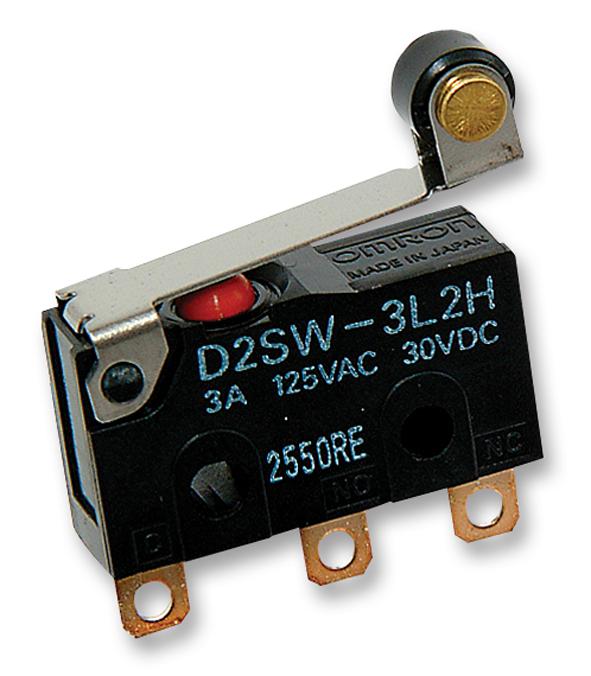

OMRON - D2SW-3L2H - Microswitch, Snap Action, Roller Lever, SPDT, Solder, 3 A, 30 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Roller Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 3A
- Contact Voltage DC Nom: 30VDC
- Product Range: D2SW Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 0.59N
- Actuation Type: Roller Lever
- Actuator Type: Hinge Roller Lever
- Contact Current AC: 2A
- Contact Current AC Max: 3A
- Contact Current DC Max: 3A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 30V
- Differential Travel Max: 0.8mm
- External Depth: 19.8mm
- External Length / Height: 10.6mm
- External Width: 6.4mm
- Fixing Centres LxW: 9.5mm
- IP / NEMA Rating: IP50
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500V
- Lever Length: 14.5mm
- No. of Electrical Operations: 200000
- Operating Force: 0.59N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Over Travel Min: 1mm
- Pre-travel: 4.8mm
- Release Force: 6gf
