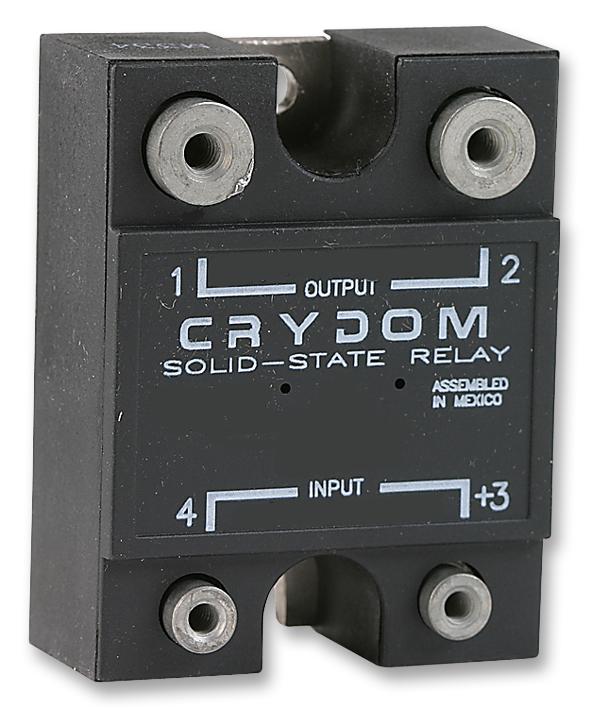

SENSATA/CRYDOM - D4D07 - Solid State Relay, SPST-NO, 7 A, 400 VDC, Panel Mount, Screw, DC Switch
- Contact Configuration: SPST-NO
- Load Current: 7A
- Operating Voltage Max: 400VDC
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: DC Switch
- Operating Voltage Min: 0VDC
- Control Voltage Min: 3.5VDC
- Control Voltage Max: 32VDC
- Product Range: 1-DC Series
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CE
- Approval Category: UL Recognised
- Control Current @ 5VDC: 1.6mA
- Control Current Max: 28mA
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3.5VDC
- Control Voltage Range: 3.5V DC to 32V DC
- Control Voltage Type: DC
- External Depth: 47.5mm
- External Length / Height: 23mm
- External Width: 45.7mm
- Insulation Resistance: 1000Mohm
- Isolation Voltage: 2.5kV
- Leakage Current: 0.3mA
- Load Current Max: 7A
- Load Current Min: 0A
- Load Current RMS Max: 7A
- Load Voltage DC Max: 400V
- Load Voltage DC Min: 0V
- On State Resistance Max: 0.6ohm
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Operating Voltage Range: 0V DC to 400V DC
- Output Type: MOSFET
- Surge Current: 17A
