ZF ELECTRONICS - DB1C-D3AA - Microswitch, Subminiature, Plunger, SPDT, Solder, 6 A, 80 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Plunger
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 6A
- Contact Voltage DC Nom: 80VDC
- Product Range: DB Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 150gf
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Plunger
- Actuator Type: Plunger
- Approval Bodies: ENEC, KEMA-KEUR
- Approval Category: UL Recognised
- Contact Current AC: 5A
- Contact Current AC Max: 5A
- Contact Voltage AC Max: 250V
- Differential Travel Max: 0.1mm
- External Depth: 6.5mm
- External Length / Height: 9mm
- External Width: 20mm
- Fixing Centres LxW: 9.5mm
- Flammability Rating: UL 94V- O
- IP / NEMA Rating: IP50
- Material: PET
- No. of Electrical Operations: 6000
- Operating Force: 1.47N
- Operating Temperature Max: 120°C
- Operating Temperature Min: -40°C
- Over Travel Min: 0.6mm
- Pre-travel: 1mm
- Switch Case: PET (Polyethylene Terephthalate)
- Switch Operation: Off-On
Verwachte verzendkosten
Bekijk ook eens

ZF ELECTRONICS
DC1C-A1AA MICROSWITCH, SPDT, PLUNGER ACTUATOR ZF ELECTRONICS
Actie prijs€8,08
Op voorraad, 437 producten
ZF ELECTRONICS
DC1C-C3AA Microswitch, Button ZF Electronics
Actie prijs€15,47
Op voorraad, 1507 producten
ZF ELECTRONICS
DB1C-A1LC Microswitch, SPDT, Med Lever ZF Electronics
Actie prijs€6,98
Op voorraad, 4160 producten
ZF ELECTRONICS

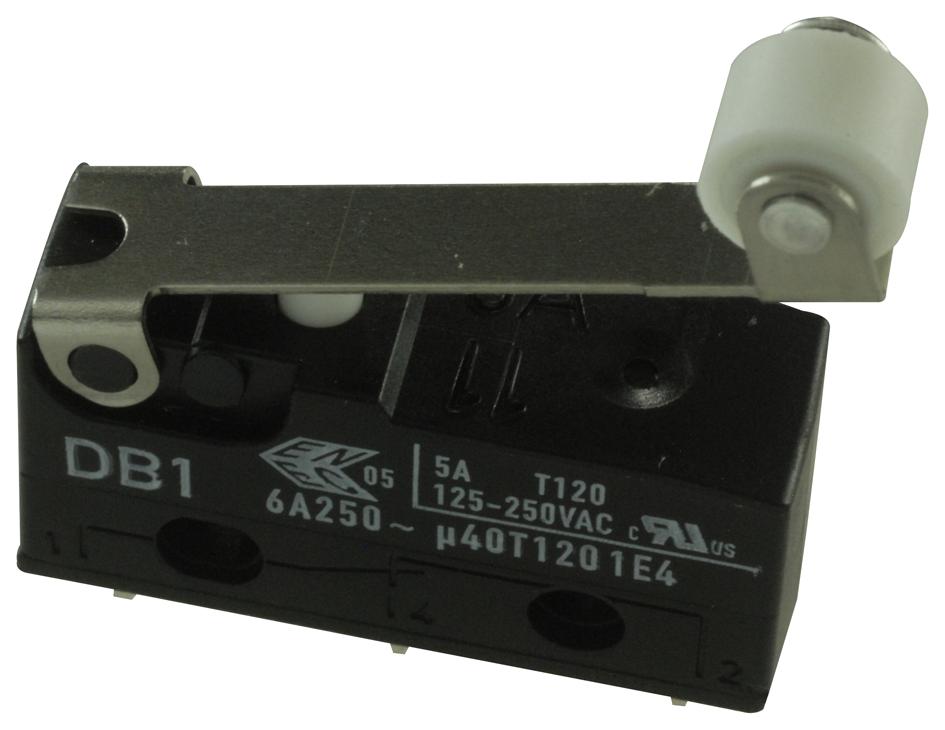

DB1C-A1RC Microswitch, Roller Lever ZF Electronics
