DC1C-C3AA Microswitch, Button ZF Electronics

ZF ELECTRONICSSKU:DC1C-C3AA Bestelcode:1180024

Prijs:
Actie prijs€15,47

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1507 units)

Documenten en downloads

Omschrijving

ZF ELECTRONICS - DC1C-C3AA - Microswitch, Snap Action, Plunger, SPDT, Wire Leaded, 5 A, 48 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Plunger
  • Contact Configuration: SPDT
  • Switch Terminals: Wire Leaded
  • Contact Current Max: 5A
  • Contact Voltage DC Nom: 48VDC
  • Product Range: DC Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 200N
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Plunger
  • Actuator Type: Plunger
  • Contact Current AC: 6A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 1A
  • Contact Current Rating: 6A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 48V
  • Differential Travel Max: 0.1mm
  • External Depth: 19.9mm
  • External Length / Height: 15.85mm
  • External Width: 6.5mm
  • Fixing Centres LxW: 9.5mm
  • Flammability Rating: UL94V-0
  • IP / NEMA Rating: IP67
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 1000000
  • Operating Force: 2N
  • Operating Temperature Max: 120°C
  • Operating Temperature Min: -40°C
  • Over Travel Min: 0.6mm
  • Pre-travel: 1mm
  • Switch Case: PBT (Polybutylene Terephthalate), PET (Polyethylene Terephthalate)

Verwachte verzendkosten

Bekijk ook eens

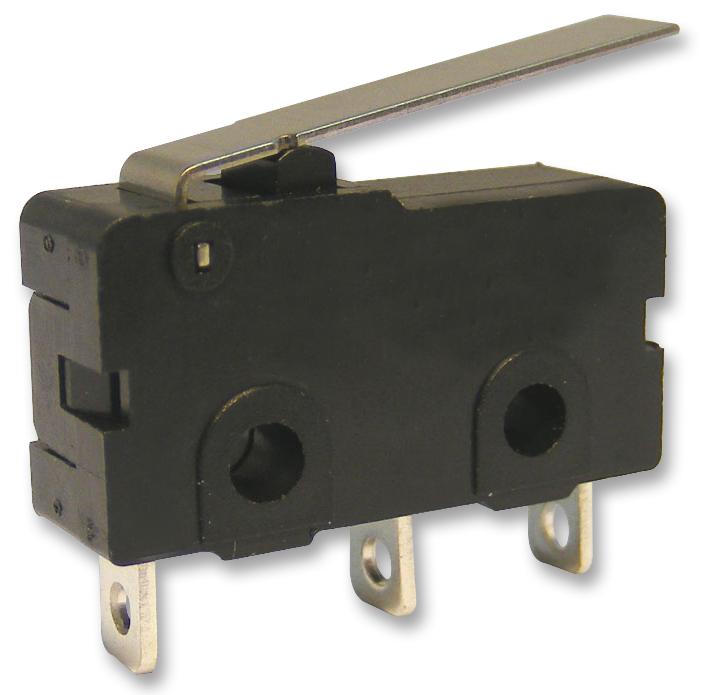

DB1C-A1LC MICROSWITCH, SPDT, MED LEVER ZF ELECTRONICS
