Omschrijving

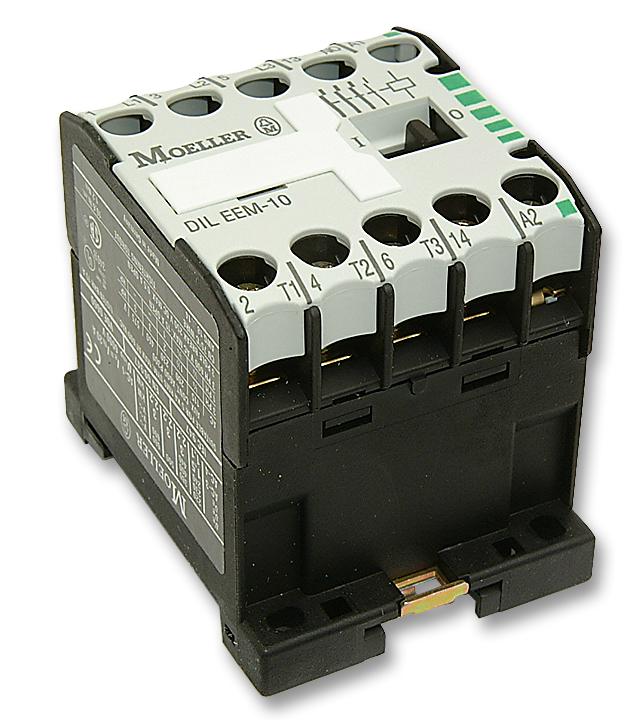

EATON MOELLER - DILEEM-10240V 50HZ - Contactor, DIN Rail, 240 VAC, 3PST-NO, 3 Pole
- Load Current Inductive: -
- Relay Mounting: DIN Rail
- Operating Voltage: 240VAC
- Contact Configuration: 3PST-NO
- No. of Poles: 3 Pole
- Switching Power AC3: -
- Switching Current AC1: 22A
- Coil Voltage VAC Nom: 240V
- Coil Voltage VDC Nom: -
- Switching Power AC1: -
- Load Current Resistive: -
- Switching Current AC3: 6.6A
- Product Range: DILEEM
- SVHC: No SVHC (17-Dec-2015)
- Approval Bodies: ASE, CSA, DEMKO, NEMKO, SEV, UL
- Aux Contact Current Max: 10A
- Coil Frequency Max: 50Hz
- Coil Operating Frequency Min: 50Hz
- Contact Current AC Max: 6A
- Contact Current DC Max: 500mA
- Contact Voltage AC Max: 400V
- Contact Voltage DC Max: 220V
- External Depth: 52mm
- External Length / Height: 58mm
- External Width: 45mm
- IP / NEMA Rating: IP20
- Insulation Voltage: 690V
- Main Contact Current AC1 Max: 20A
- Main Contact Current AC3 Max: 6.6A
- No. of Mechanical Operations: 10000000
- Operating Temperature Max: 50°C
- Operating Temperature Min: -25°C
- Relay Type: Contactor
- Switching AC3 Power Max: 3kW
