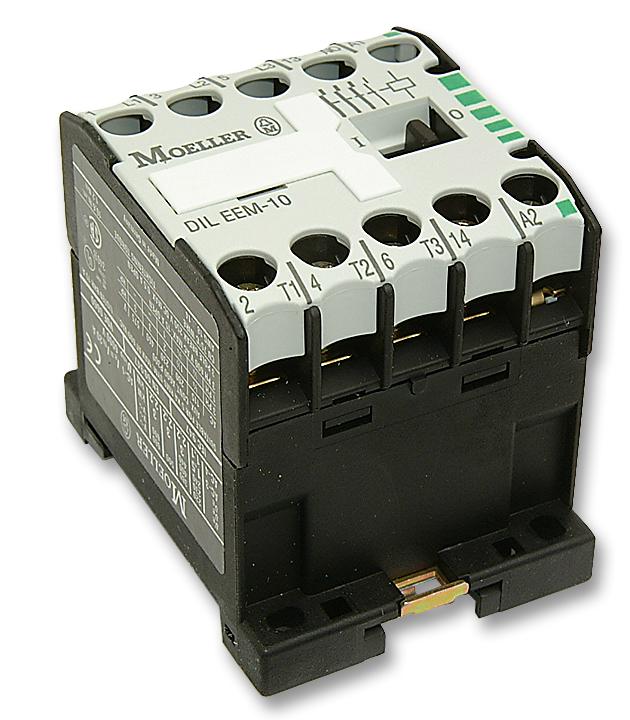

EATON MOELLER - DILEM-10 240VAC - Contactor, 9 A, Panel Mount, 690 VAC, 3PST, 3 Pole, 4 kW
- Load Current Inductive: 9A
- Relay Mounting: Panel
- Operating Voltage: 690VAC
- Contact Configuration: 3PST
- No. of Poles: 3 Pole
- Switching Power AC3: 4kW
- Switching Current AC1: 22A
- Coil Voltage VAC Nom: 240V
- Coil Voltage VDC Nom: -
- Switching Power AC1: 1.5kW
- Load Current Resistive: 22A
- Switching Current AC3: 9A
- Product Range: DILEM
- SVHC: No SVHC (17-Dec-2015)
- Contactor Direction: Non-Reversing
- External Depth: 52mm
- External Length / Height: 58mm
- External Width: 45mm
- Height: 58mm
- IP Rating: IP20
- Operating Temperature Max: 50°C
- Operating Temperature Min: -25°C
- Relay Type: Contactor
