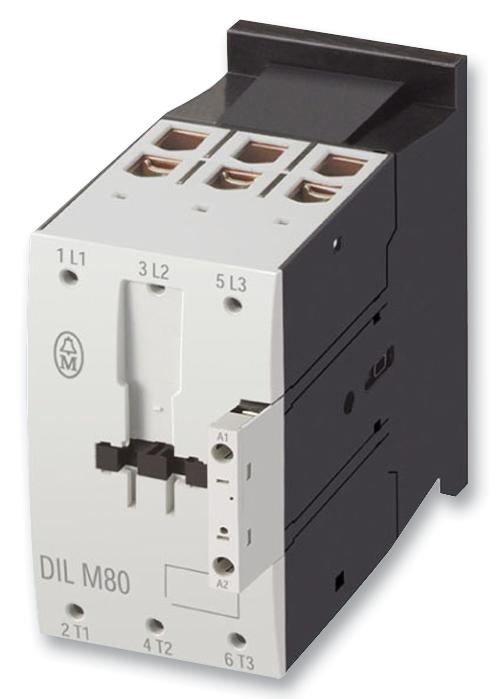

EATON MOELLER - DILM80(24V50HZ) - Contactor, DIN Rail, Panel, 690 VAC, 3PST-NO, 3 Pole, 37 kW
- Load Current Inductive: -
- Relay Mounting: DIN Rail, Panel
- Operating Voltage: 690VAC
- Contact Configuration: 3PST-NO
- No. of Poles: 3 Pole
- Switching Power AC3: 37kW
- Switching Current AC1: 98A
- Coil Voltage VAC Nom: 240V
- Coil Voltage VDC Nom: -
- Switching Power AC1: -
- Load Current Resistive: -
- Switching Current AC3: 80A
- Product Range: DILM
- SVHC: No SVHC (17-Dec-2015)
- Approval Bodies: CSA, EN, IEC, UL, VDE
- Coil Voltage: 24V
- Coil Voltage Max: 24VAC
- Contact Current: 80A
- Contact Current AC Max: 80A
- Contact Voltage AC Max: 400V
- Contact Voltage VAC: 690V
- Dielectric Voltage Coil to Contact: 440VAC
- Dielectric Voltage Contact to Contact: 440VAC
- External Depth: 176mm
- External Height: 170mm
- External Length / Height: 170mm
- External Width: 90mm
- Insulation Voltage: 690VAC
- Main Contact Current AC3 Max: 80A
- Power Rating: 37kW
- Relay Terminals: Screw
- Relay Type: Contactor
