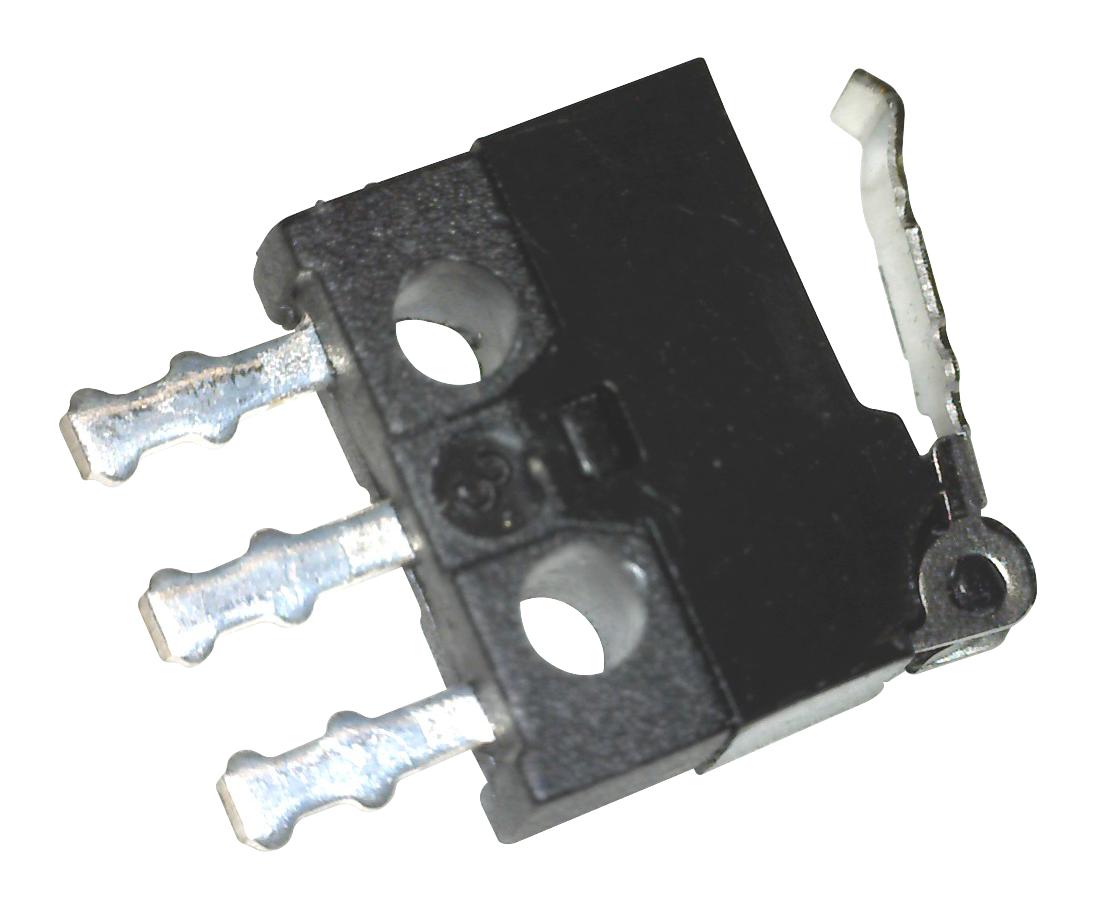

DM1-02P-30-3 Microswitch, SPDT, 1A, Sim Lever multicomp Pro

MULTICOMP PRO - DM1-02P-30-3 - Microswitch, Snap Action, Lever, SPDT, Solder, 1 A, 5 VDC

• Microswitch Type: Snap Action
• Microswitch Actuator: Lever
• Contact Configuration: SPDT
• Switch Terminals: Solder
• Contact Current Max: 1A
• Contact Voltage DC Nom: 5VDC
• Product Range: DM1 Series
• Contact Voltage AC Nom: 125VAC
• Operating Force Max: 20gf
• SVHC: No SVHC (07-Jul-2017)
• Contact Current AC Max: 1A
• Contact Current DC Max: 30mA
• Contact Resistance: 100mohm
• Contact Voltage AC Max: 125V
• Contact Voltage DC Max: 5V
• External Depth: 5.7mm
• External Width: 12.8mm
• Height: 6.5mm
• Insulation Resistance: 100Mohm
• No. of Electrical Operations: 1000000
• No. of Mechanical Operations: 1000000
• Operating Force: 0.2N
• Operating Temperature Max: 65°C
• Operating Temperature Min: -25°C
• Switch Case: PBT (Polybutylene Terephthalate)
• Switch Operation: Off-On
