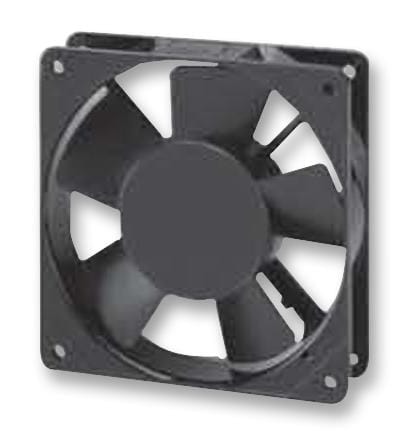

DP203AT 2122LBL.GN Fan, 120X120X25MM, 230VAC SUNON

SUNONSKU:DP203AT 2122LBL.GN Bestelcode:1568517

Prijs:
Actie prijs€44,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (27 units)

Documenten en downloads

Omschrijving

SUNON - DP203AT 2122LBL.GN - AC Axial Fan, 220V to 240V, Square, 120 mm, 25 mm, Ball Bearing, 54 CFM

  • Supply Voltage: 240V
  • Current Type: AC
  • Fan Frame Size: 120mm
  • External Depth: 25mm
  • Noise Rating: 40dBA
  • Flow Rate - Imperial: 54cu.ft/min
  • Flow Rate - Metric: 1.53m³/min
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: 70mA
  • Product Range: DP Series
  • Power Rating: 14W
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CE, TUV, UL
  • Case Material: Aluminium Alloy
  • Current Consumption: 0.07A
  • External Height: 120mm
  • External Width: 120mm
  • Frame Dimensions: 120mm x 120mm x 25mm
  • Frequency Max: 60Hz
  • Frequency Min: 50Hz
  • Lead Length: 320mm
  • Power Consumption: 14W
  • Speed Range Max: 1700rpm
  • Voltage Rating AC Max: 240VAC
  • Voltage Rating AC Min: 220VAC
