DPM 160 DPM, Lcd, 4.5DIGIT, Mini Lascar

LASCARSKU:DPM 160 Bestelcode:9932593

Prijs:
Actie prijs€142,93

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (31 units)

Documenten en downloads

Omschrijving

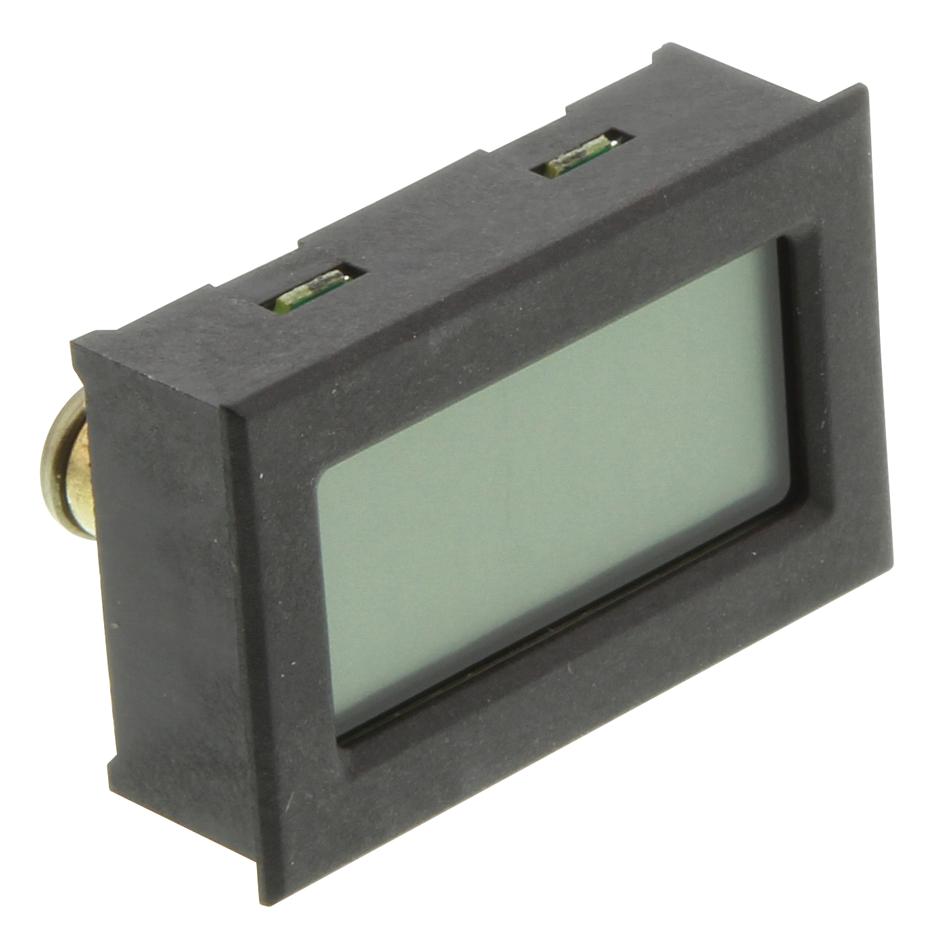

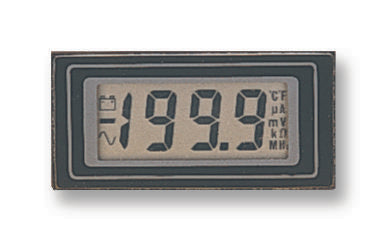

LASCAR - DPM 160 - Digital Panel Meter, Compact LCD, FSR, 4-1/2 Digits, DC Voltage, 0mV to 200mV, 0V to 2V

  • No. of Digits / Alpha: 4-1/2
  • Meter Function: DC Voltage
  • Meter Range: 0mV to 200mV, 0V to 2V
  • Digit Height: 12.5mm
  • Panel Cutout Height: 27mm
  • Panel Cutout Width: 57mm
  • Supply Voltage Min: 6V
  • Supply Voltage Max: 14V
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 50°C
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Accuracy: 0.005% + 1 digit
  • Bezel Height: 30mm
  • Bezel Width: 60mm
  • Character Size: 12.5mm
  • Display Size: 60mm x 30mm
  • Display Technology: LCD
  • External Depth: 6.7mm
  • External Length / Height: 24.8mm
  • External Width: 52mm
  • Full Scale Reading: 200mV
  • Height: 24.8mm
  • Input Leakage Current: 1pA,10pA
  • Linearity: ± 1 digit
  • No. of Pins: 20Pins
  • Operating Temperature Range: 0°C to +50°C
  • Panel Cutout Depth: 27mm
  • Socket Type: SIL
  • Supply Current: 1mA
  • Supply Voltage DC Max: 14V
  • Supply Voltage DC Min: 6V
  • Supply Voltage Range: 6V DC to 14V DC
  • Temperature Stability + @: 30ppm/C
