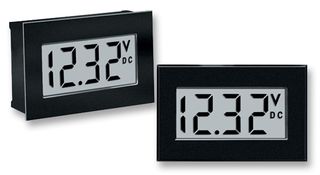

LASCAR - DPM 2000S - Digital Panel Meter, LCD, Negative Rail, 3-1/2 Digits, DC Voltage, 0mV to 200mV
- No. of Digits / Alpha: 3-1/2
- Meter Function: DC Voltage
- Meter Range: 0mV to 200mV
- Digit Height: 15mm
- Panel Cutout Height: 33mm
- Panel Cutout Width: 68mm
- Supply Voltage Min: 3.5V
- Supply Voltage Max: 6.5V
- Operating Temperature Min: 0°C
- Operating Temperature Max: 50°C
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 0.05%
- Bezel Height: 36mm
- Bezel Width: 72mm
- Character Size: 15mm
- Display Size: 53mm x 19mm
- Display Technology: LCD
- External Depth: 6.7mm
- External Length / Height: 32.5mm
- External Width: 67.5mm
- Full Scale Reading: 200mV
- Height: 32.5mm
- Input Leakage Current: 1pA typ,10pAmax
- Linearity, +: 1%
- Linearity, -: 1%
- Operating Temperature Range: 0°C to +50°C
- Pitch Spacing: 2.54mm
- Supply Current: 150µA
- Supply Voltage DC Max: 6.5V
- Supply Voltage DC Min: 3.5V
- Supply Voltage Range: 3.5V DC to 6.5V DC
- Supply Voltage V DC: 5V
- Temperature Stability + @: 30 ppm/C
