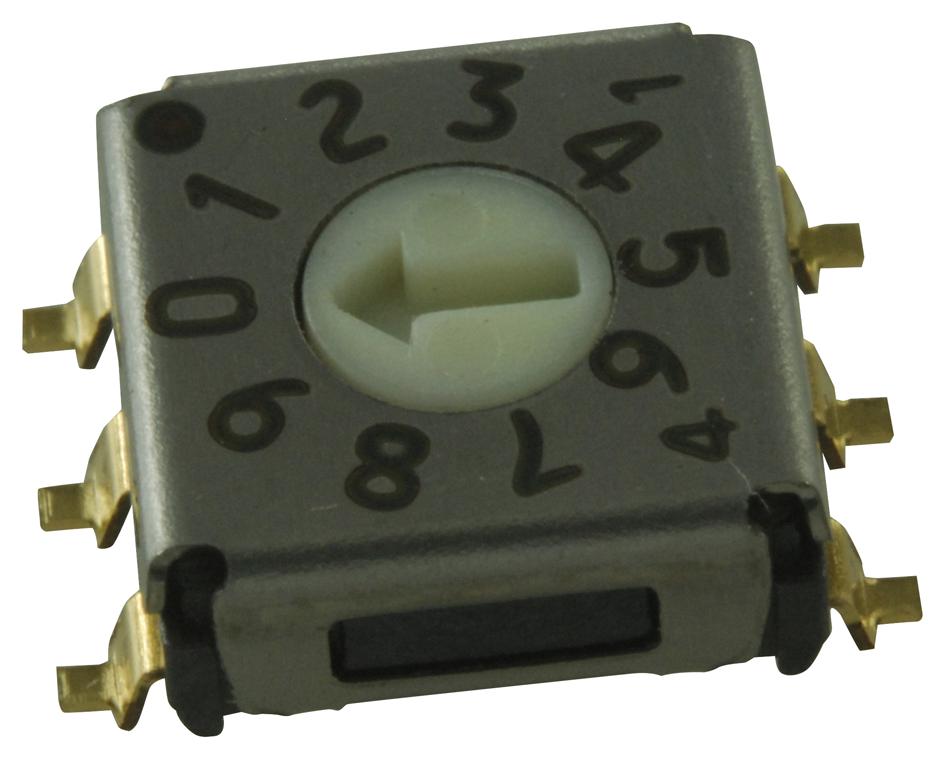

DRR3010 Switch, BCD, Vert Knitter-Switch

KNITTER-SWITCH - DRR3010 - Rotary Switch, 10 Position, 36 °, 30 mA, DRR3000

• No. of Switch Positions: 10 Position
• No. of Poles: -
• Angle of Throw: 36°
• Contact Current AC Max: 30mA
• Contact Voltage AC Max: -
• Product Range: DRR3000 Series
• Illumination: Non Illuminated
• Contact Current DC Max: 30mA
• Contact Voltage DC Max: 50V
• SVHC: No SVHC (15-Jan-2018)
• Actuator Level: Flushed
• Angle: 36°
• Contact Current @ Contact Voltage DC Max: 30mA
• Contact Current Rating: 100mA
• Contact Resistance: 100mohm
• Dielectric Strength VDC: 250V
• External Depth: 6.9mm
• External Length / Height: 10mm
• External Width: 10mm
• Indexing Angle: 36°
• No. of Mechanical Operations: 20000
• No. of Positions: 10Ways
• Operating Temperature Max: 75°C
• Operating Temperature Min: -25°C
• Output Code: BCD
• Pin Configuration: 0.65x0.35mm
• Switch Construction: Sealed
• Switch Mounting: Through Hole
• Switching Current: 100mA
• Switching Voltage: 50VDC
