Omschrijving
KNITTER-SWITCH - DRS3010 - Rotary Coded Switch, DRS3000, Through Hole, 10 Position, 50 VDC, BCD, 100 mA
- Product Range: DRS3000 Series
- Switch Mounting: Through Hole
- No. of Switch Positions: 10 Position
- Switching Voltage: 50VDC
- Output Code: BCD
- Switching Current: 100mA
- Switch Construction: Sealed
- Actuator Level: Flushed
- SVHC: No SVHC (15-Jan-2018)
- Angle: 36°
- Angle of Throw: 36°
- Contact Current @ Contact Voltage DC Max: 30mA
- Contact Current DC Max: 30mA
- Contact Current Rating: 100mA
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 50V
- Dielectric Strength VDC: 250V
- External Depth: 10mm
- External Length / Height: 4.8mm
- External Width: 10mm
- Indexing Angle: 36°
- No. of Mechanical Operations: 20000
- No. of Positions: 10Ways
- Operating Temperature Max: 75°C
- Operating Temperature Min: -25°C
- Pin Configuration: 0.65x0.35mm
Verwachte verzendkosten
Bekijk ook eens

KNITTER-SWITCH
DRS3016 Switch, Hex, HORIZ Knitter-Switch
Actie prijs€11,02
Op voorraad, 744 producten
KNITTER-SWITCH
SMR 13010 ROTARY CODED SWITCH KNITTER-SWITCH
Actie prijs€13,11
Op voorraad, 56 producten
ERG COMPONENTS
ERG10-412/6 Switch, BCD, Blue Erg Components
Actie prijs€38,15
Op voorraad, 311 producten
KNITTER-SWITCH
SMR 13016 Rotary Coded Switch Knitter-Switch
Actie prijs€12,88
Op voorraad, 261 producten
MULTICOMP PRO
MCTIIR-10-T Switch, Dil, Tri-State, 10WAY multicomp Pro
Actie prijs€2,63
Op voorraad, 2098 producten
MULTICOMP PRO

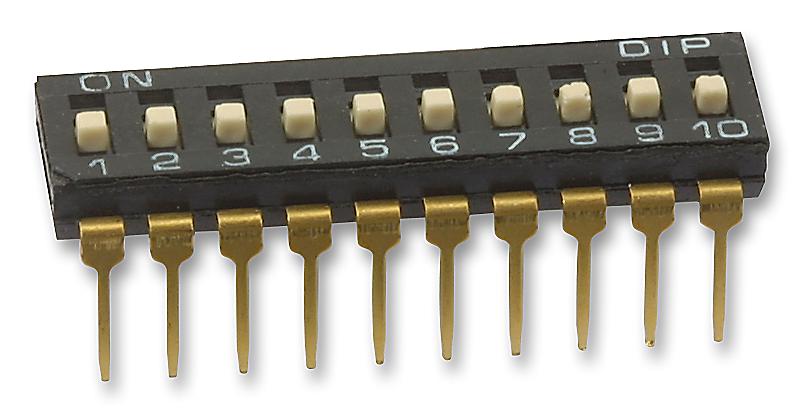

MCNDI-10s Switch, Dil, Low, 10WAY multicomp Pro
Actie prijs€2,59
Op voorraad, 1309 producten
KNITTER-SWITCH
SMR 14016 Rotary Coded Switch Knitter-Switch
Actie prijs€13,53
Op voorraad, 148 producten
MULTICOMP PRO

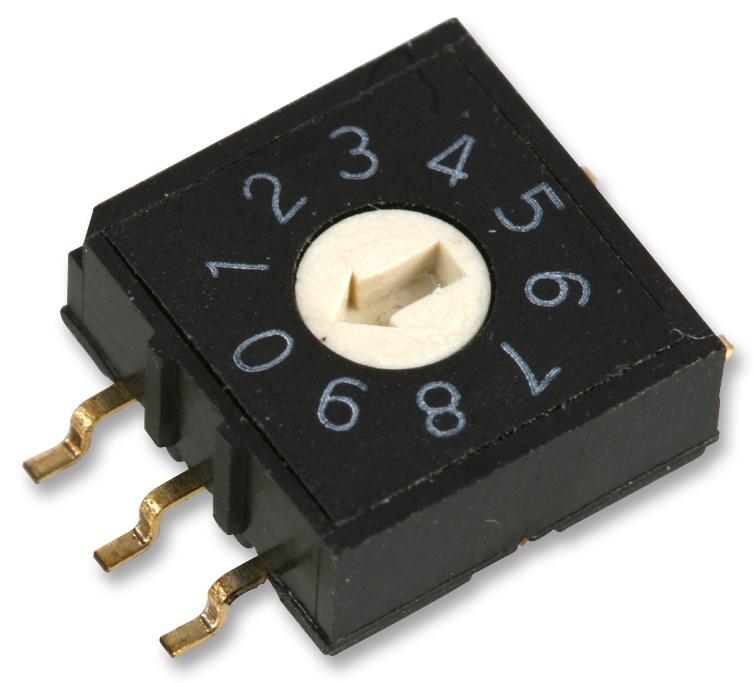

MCRM2AF-10R Rotary Dip Switch, SMD multicomp Pro
