DX1116/GN LED Indicator, 4mm, Green Bulgin Limited

BULGIN LIMITEDSKU:DX1116/GN Bestelcode:170164

Prijs:
Actie prijs€11,76

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6421 units)

Documenten en downloads

Omschrijving

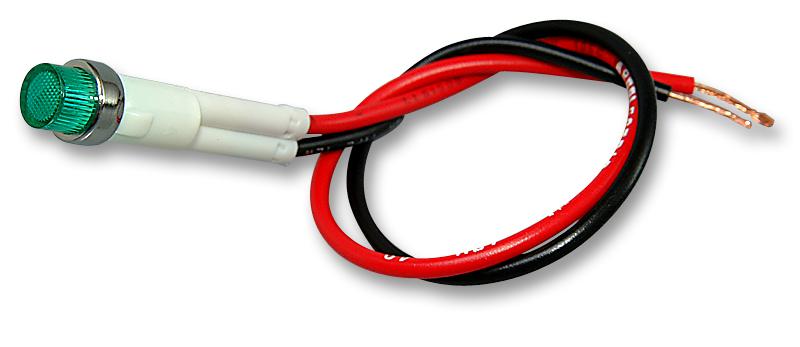

BULGIN LIMITED - DX1116/GN - LED Panel Mount Indicator, Brass Bezel, Green, 2.1 VDC, 6.1 mm, 30 mA, 2.5 mcd, Not Rated

  • LED Colour: Green
  • Operating Voltage: 2.1VDC
  • Mounting Hole Dia: 6.1mm
  • Forward Current If: 30mA
  • Luminous Intensity: 2.5mcd
  • IP / NEMA Rating: Not Rated
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Bezel Diameter: 7.6mm
  • Bulb Size: 4mm
  • Current If Luminous Intensity: 20mA
  • External Diameter: 7.6mm
  • External Length / Height: 14mm
  • Fixing Hole Diameter: 6.2mm
  • Forward Current If Max: 30mA
  • Forward Voltage: 2.1V
  • Forward Voltage VF Max: 2.1V
  • LED / Lamp Size: 4mm
  • Lens Shape: Dome
  • Luminous Intensity Typ: 3.5mcd
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +80°C
  • PIV Max: 3V
  • Peak Forward Current: 25mA
  • Thread Pitch: 0.75mm
  • Thread Size: M6
  • Voltage Vf Typ: 2.1V
