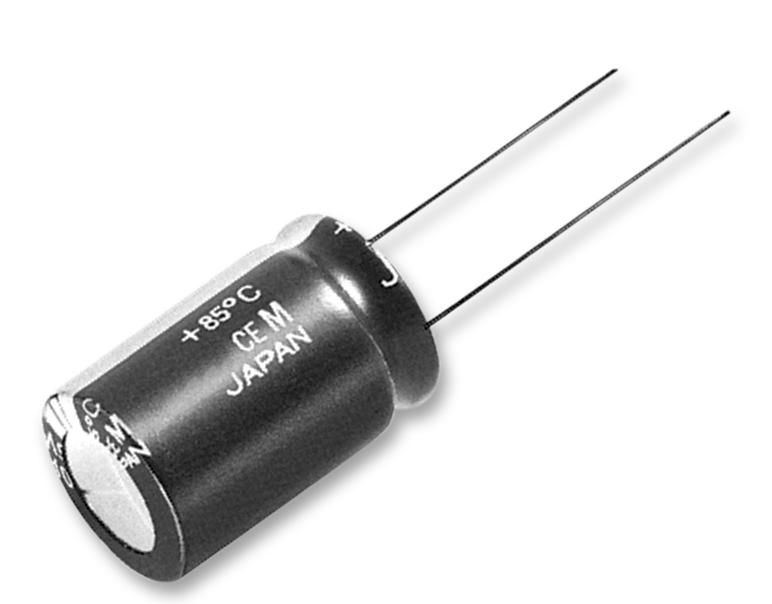

PANASONIC - ECA1VAM472X - Electrolytic Capacitor, 4700 µF, 35 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Polar
- Capacitance: 4700µF
- Voltage Rating: 35V
- Product Range: AM Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 18mm
- Lead Spacing: 7.5mm
- Height: 35.5mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Lifetime @ Temperature: 2000 hours @ 85°C
- ESR: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- Capacitor Application: Audio
- External Length / Height: 35.5mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 2000h
- Ripple Current AC: 1600mA
- Tolerance -: 20%
- Voltage Rating V DC: 35V
