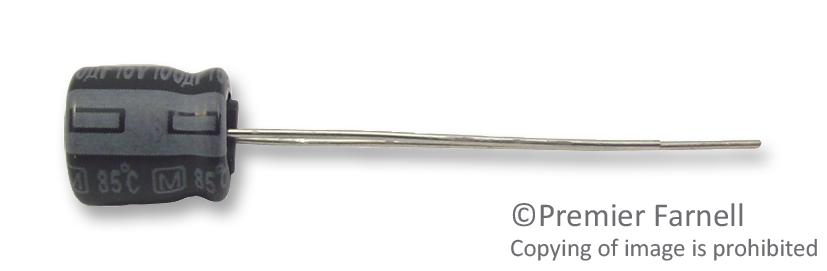

PANASONIC - ECA2VHG470 - Electrolytic Capacitor, 47 µF, 350 V, ± 20%, Radial Leaded, 1000 hours @ 105°C, Polar
- Capacitance: 47µF
- Voltage Rating: 350V
- Product Range: NHG Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 16mm
- Lead Spacing: 7.5mm
- Height: 25mm
- Operating Temperature Min: -25°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 1000 hours @ 105°C
- ESR: -
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 25mm
- Lead Diameter: 0.8mm
- Operating Temperature Range: -25°C to +105°C
- Ripple Current AC: 230mA
