Omschrijving

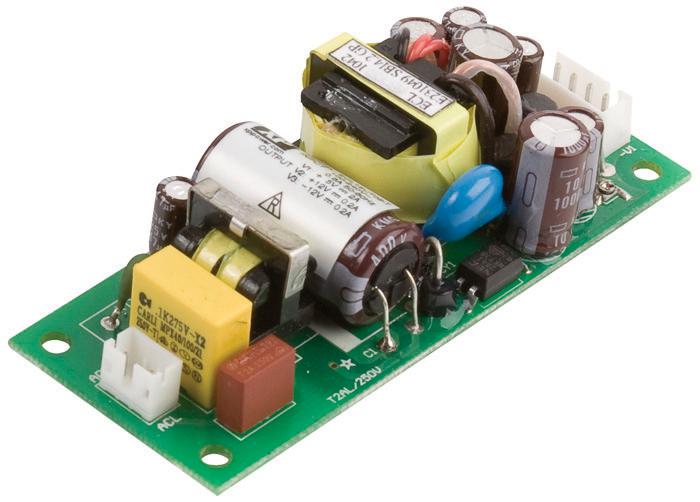

XP POWER - ECL10US03-T - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 8.6 W, 85V AC to 264V AC, Adjustable, Fixed
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 8.6W
- Power Rating (Forced Cooling): -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 3.3V
- Output Current - Output 1: 2.6A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECL Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CSA, cUL, EN, UL
- Efficiency: 72%
- External Depth: 21.59mm
- External Length / Height: 66.04mm
- External Width: 25.4mm
- Height: 66.04mm
- Input Current: 0.2A
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Inrush Current: 40A
- Length: 21.59mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Output Current Max: 2.6A
- Output Power: 8.6W
- Output Power Max: 8.6W
- Peak Output Current: 3.38A
- Power Rating: 10W
- Power Supply Type: Switch Mode
