Omschrijving

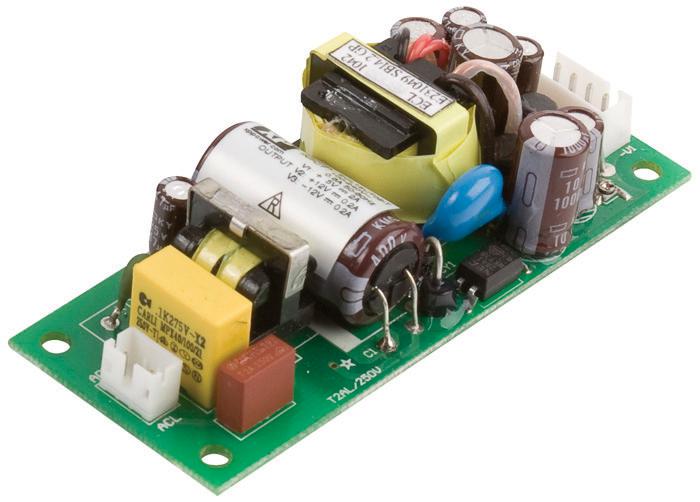

XP POWER - ECL15US09-T - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 15 W, 85V AC to 264V AC, Adjustable, Fixed
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 15W
- Power Rating (Forced Cooling): -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 9V
- Output Current - Output 1: 1.67A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECL Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CSA, cUL, EN, UL
- Efficiency: 80%
- External Depth: 78.74mm
- External Length / Height: 23.13mm
- External Width: 31.75mm
- Height: 23.13mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Inrush Current Max: 20A @ 115VAC , 40A @230VAC
- Length: 78.74mm
- Line Regulation: 0.5%
- Load Regulation: 1%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Output Current Max: 1.67A
- Output Power: 15W
- Output Power Max: 15W
