ECS60US24 Power Supply, AC-DC, Medical, 24V, 2.5A XP Power

XP POWERSKU:ECS60US24 Bestelcode:1860932

Prijs:
Actie prijs€70,70

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1021 units)

Documenten en downloads

Omschrijving

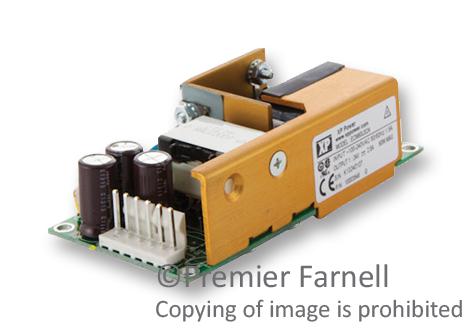

XP POWER - ECS60US24 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 60 W, 80V AC to 264V AC

  • No. of Outputs: 1 Output
  • Power Rating (Covection Cooling): 60W
  • Power Rating (Forced Cooling): -
  • Input Voltage VAC: 80V AC to 264V AC
  • Power Supply Output Type: Adjustable, Fixed
  • Output Voltage - Output 1: 24V
  • Output Current - Output 1: 2.5A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Product Range: ECS Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approvals / Standards: CSA 22.2 No. 60601, EN 60601, IEC 60601, UL 60601
  • Height: 26.7mm
  • Input Frequency: 400Hz
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 80V
  • Length: 76.2mm
  • No. of Outputs: 1Outputs
  • Output Current Max: 2.5A
  • Output Power Max: 60W
  • Power Rating: 60W
  • Power Supply Type: Open Frame
  • Width: 50.8mm
