Condensatoren

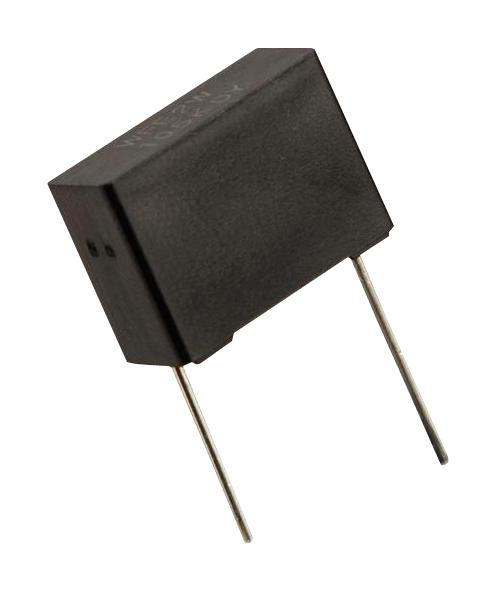

ECWF2475JA CAP, 4.7µF, 250V, 5%, PP, THROUGH HOLE PANASONIC
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
ECWF2475JA CAP, 4.7µF, 250V, 5%, PP, THROUGH HOLE PANASONIC

ECWF2475JA Cap, 4.7µF, 250V, 5%, PP, Through Hole Panasonic

PANASONICSKU:ECWF2475JA Bestelcode:1854900
Prijs:
€6,08

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (458 units)

Documenten en downloads

Technical Data Sheet - EN
Technical Data Sheet - EN
Technical Data Sheet - EN

Omschrijving

PANASONIC - ECWF2475JA - General Purpose Film Capacitor, Metallized PP, Radial Box - 2 Pin, 4.7 µF, ± 5%, 125 V, 250 V

  • Capacitance: 4.7µF
  • Voltage Rating: 250V
  • Capacitor Dielectric Type: PP (Polypropylene)
  • Capacitance Tolerance: ± 5%
  • Product Range: ECWF(A) Series
  • Capacitor Case Style: -
  • Capacitor Terminals: Radial Leaded
  • Lead Spacing: 20mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 105°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 5%
  • Capacitor Mounting: Through Hole
  • External Depth: 14.8mm
  • External Length / Height: 20.6mm
  • External Width: 23.8mm
  • Height: 20.6mm
  • Lead Diameter: 0.8mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +105°C
  • Voltage Rating V DC: 250V
